Flow Rate 1.0 CFM (28.3 LPM) ±5% accuracy / Particle Size Range 9310-02, 9310: 0.3 to 25 µm

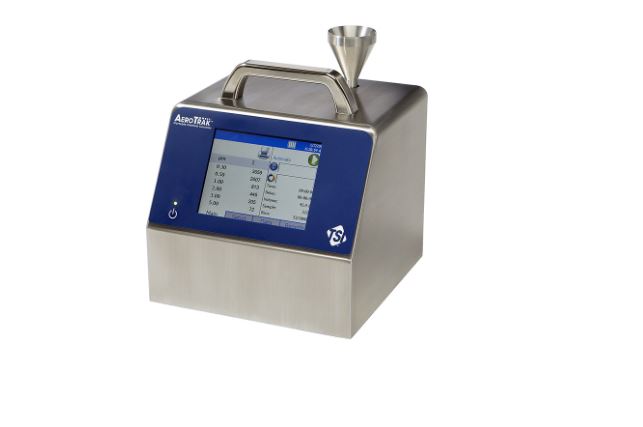

The TSI AeroTrak® Portable Particle Counter Model 9310 offers best-in-class features and versatility. The Model 9310 provides a 1.0 CFM (28.3 L/min) flow with 0.3 μm sensitivity. Compatible with TSI’s accurate ventilation probes that measure air velocity/temperature/RH, this product provides you with a complete solution for your certification need. Particle count data can be conveniently viewed on screen, downloaded using TrakPro™ Lite Secure software, or printed directly to the integrated printer. This particle counter can generate pass/fail reports for ISO 14644-1, EU GMP Annex 1, and FS209E, via the onboard printer and the supplied TrakPro Lite Secure download software. Multiple particle counter configurations can be conveniently stored and uploaded as needed. This product can be used as a stand-alone particle counter or integrated into a facility monitoring system like TSI’s FMS 5. The Model 9310 complies with all the stringent requirements set forth in ISO 21501-4. It is calibrated with NIST traceable PSL spheres using TSI’s world-class Classifier and Condensation Particle Counters, the recognized standard for particle measurements.
Particle contamination monitoring
Installed filter leak testing
