DT85M - intelligenter Datenlogger mit integriertem Modem

Product Description

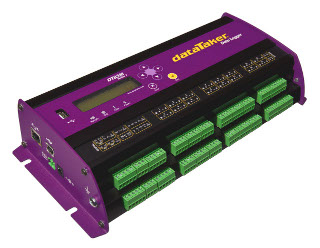

The dataTaker DT85M is a robust, stand alone, ultra low powerdata logger with an integrated 2G/3G modem that allows it to beused across a wide variety of remote applications.

Automatic Data Delivery

The days of travelling long distances to get your data are over.The DT85M's automatic data delivery features allow you to scheduleyour data to be automatically emailed to your inbox every day,week, month or other time interval. More sophisticated systems canmake use of the automatic data delivery features to send loggeddata to a FTP server.

Alarm conditions can also trigger data delivery or alarmmessages to multiple email addresses or mobile phones.

deTermined Communications

Mobile network outages can occur at any time and can last forminutes or days, however dataTaker have gone to great lengths toensure the reliability of data transmissions. The DT85M canrecognise incomplete downloads and will try again until the entiredata file is transmitted, ensuring no lost data. If the networkdrops your logger, the modem automatically reconnects before thenext scheduled transmission.

If the mobile network has marginal coverage, the DT85M can scanfor alternative networks and select the strongest signal.

Easy to Configure

The DT85M is configured directly in your web browser usingdatataTaker's dEX graphical interface. dEX takes you through theconfiguration of your logger, showing you wiring diagrams andallowing you to decide - in as much or as little detail - how youwant the system to work, suiting both novice and advancedusers.

Using the internal modem you can even re-configure your systemremotely over the internet if required.

Applications include:

  • Weather Stations

Technical Specification


Analog Channels

16 analog input channels (expandable to 320*)

Each channel is independent and supports: one isolated

3 wire or 4-wire input, or two isolated 2-wire inputs, or

three common referenced 2-wire inputs.

The following maximums apply:

Two wire with common reference terminal: 48 (expandable

to 960)*

Two wire isolated: 32 (expandable to 640)*

Three and four wire isolated: 16 (expandable to 320)

*Expansion requires optional CEM20.



Fundamental Input Ranges

The fundamental inputs that the DT85M can measure

are voltage, current, resistance and frequency. All other

measurements are derived from these.


Auto-ranging is supported over 3 ranges


Accuracy table above is % of reading ±0.01% of full scale.



Integrates over 50/60Hz line period for accuracy and noise


Maximum sample speed: 25Hz

Effective resolution: 18 bits

Linearity: 0.01%

Common mode rejection: >90dB

Line series mode rejection: >35d



Inter-Channel Isolation: 100V (relay switching)

Analog Section Isolation: 100V (opto-isolated)

Input impedance: >100MΩ, 100KΩ (30v range)

Common mode range: ・}3.5V or ・}30V on 30V rang


Sensor Excitation (Supply)

Analog channels: selectable 250μA or 2.5mA precision

current source, 4.5V voltage source, or switched external


General Purpose: Switchable 12V regulated supply for

powering sensors & accessories (max 150mA).

Switchable 5V regulated supply for powering analog

sensors (max 25mA).


Analog Sensors

Supports a wide range of sensors including, but not limited

to, those listed below. A wide range of sensor scaling and

linearising facilities including polynomials, expressions

and functions.



Types: B, C, D, E, G, J, K, N, R, S, T

Calibration standard: ITS-90



Materials supported: Pt, Ni, Cu

Resistance range: 10Ω to 10KΩ




Types: YSI 400xx Series, other types*

Resistance range: <10kΩ*

* Other thermistor types are supported by thermistor scaling and calculated channels.



**Resistance range can be increased with the use of a parallel resistor.



Monolithic Temperature Sensors

Types supported: LM34 - 60, AD590, 592, TMPxx,

LM135, 235, 335


Strain Gauge and Bridge Sensors

Configurations: . , . & full bridge

Excitation: voltage or current


4-20mA Current Loop

Internal 100Ω shunt or external shunt resistor


Digital Channels

Digital Input/Outputs

8 bi-directional channels

Input Type: 8 logic level (max 20/30V)

Output Type: 4 with open drain FET(max: 30V, 100mA),

4 with logic output.


Relay Output

1 latching relay, contacts (max: 30Vdc, 1A)


Counter Channels

Low Speed Counters

8 counters shared with digital inputs.

Low speed counters do not function in sleep mode.

Size: 32 bit

Max count rate: 10 Hz


Dedicated Counter Inputs

7 high speed inputs or 3 phase encoder (quadrature) inputs

Size: 32 bit

Max count rate: 100 kHz

Input type: 5 logic level inputs (max ・}30V), and 2

programmable inputs as either logic level inputs or

sensitive inputs (10mV) for magnetic pick-ups (max ・}10V)


Serial Channels


4 SDI-12 inputs shared with digital channels. Each input

can support up to 10 SDI-12 sensors.


Calculated Channels

Combine values from analog, digital and serial sensors

using expressions involving variables and functions.

Functions: An extensive range of Arithmetic,

Trigonometric, Relational,
