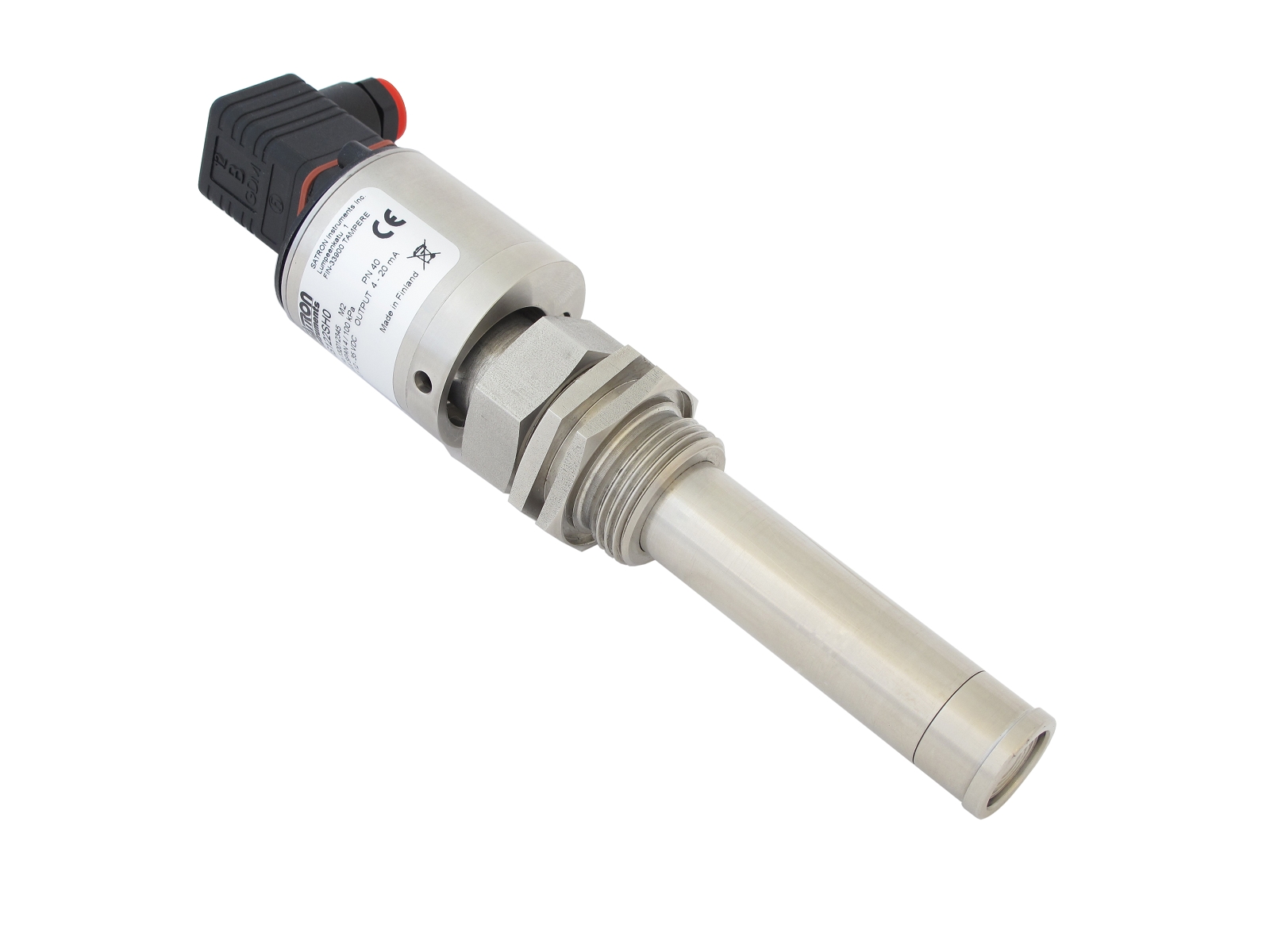

VB pressure transmitter
Product Description
Measuring the pressure of gases, steams and sedimenting crystallizing and sticking liquids. Measuring range: -0,1…3 MPa
SATRON VB is user-friendly, through the ball valve mounted transmitter which is used for 0-4 kPa … 0-3 MPa ranges.
The transmitter communicates in a 2-wire system. In pressure measuring applications SATRON VB transmitter
is used for measuring the pressure of gases, steams and sedimenting, crystallizing and sticking liquids. The
transmitter’s sensor is piezoresistive. The rangeability of the model VB6 is 100:1. The transmitter communicates digitally
using the HART® protocol.
Technical Specification
Measuring Range: -0,1…3 MPa
Adjustability: 0-4 kPa…0-3 MPa
Applicability: Measuring the pressure of gases, steams and sedimenting crystallizing and sticking liquids
Mounting: Through the ball valve mounted
.
