Opis izdelka

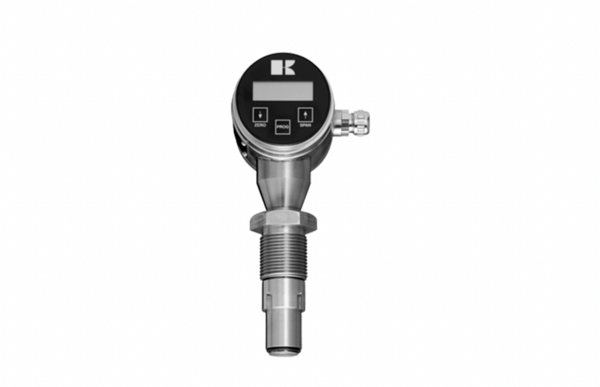

The Series 2000 includes a complete range of intelligent pressure and level transmitters with an integrated local display and easy configuration using three function keys.
Zero and span adjustment can be performed without applying test pressure, making calibration especially fast, simple, and efficient.
The integrated display supports various engineering units and also assists with programming and parameter configuration. In addition, process temperatures can be displayed, and the damping time can be adjusted from 0 to 25 seconds.
The devices also feature integrated 4–20 mA current simulation for simplified commissioning and maintenance.
Thanks to full temperature compensation, the transmitters provide high measurement accuracy and stable performance even under changing environmental conditions.
The Series 2000 offers more than 50 different process connections, including numerous flush diaphragm versions and connections compatible with PMC, Vega, and Endress+Hauser (E+H) systems.
The robust stainless steel construction was specifically developed for demanding applications in the pulp and paper industry as well as other industrial environments with contaminated process media.
Optional versions are available with ATEX, IECEx, and HART® communication approvals.
Tehnične specifikacije
The Series 2000 pressure and level transmitters support measurement ranges from 0.1 to 100 bar.
Measurement accuracy is rated at 0.1% of adjusted span.
The standard output signal is provided through a 4–20 mA two-wire output, with optional HART® protocol support.
Configuration can be performed directly using the integrated function keys or optionally through a HART® handheld terminal.
Power supply requirements are 12 to 36 VDC, while the intrinsically safe Exi version operates from 13 to 26.5 VDC.
The transmitters are rated IP66 as standard, with an optional IP68 version available.
The allowable process temperature range is −20 °C to +80 °C, optionally extendable to +100 °C.
The ambient temperature range is −20 °C to +70 °C.
All wetted parts are manufactured from AISI 316 stainless steel, while the electronics housing is made from AISI 304 stainless steel. An optional AISI 316 stainless steel housing is also available.
More than 50 different process connection options are available, including flush diaphragm designs and connections compatible with PMC, Vega, and E+H systems.
The devices are additionally certified according to ATEX II1G, IECEx, and II 2 D standards.
