Opis izdelka

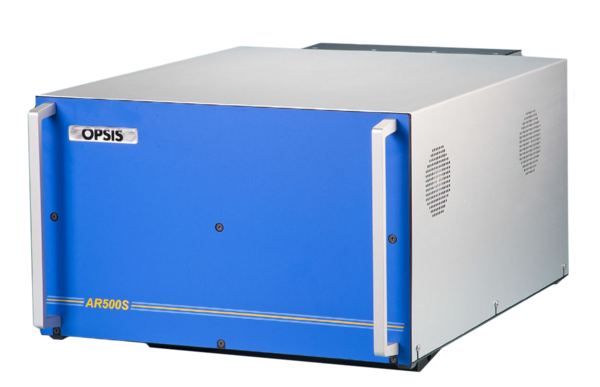

The OPSIS AR500 Analyzer is the central unit of an OPSIS system designed for ambient air quality and fence-line monitoring. The system receives light signals from one or multiple optical monitoring paths via fiber optic cables and provides measurement data through the OPSIS software for analysis and visualization.
The analyzer features a high-performance spectrometer that converts incoming light into digital signals and analyzes them using the integrated computer system. The software contains spectrographic “fingerprints” for numerous predefined compounds. By applying the Beer-Lambert law, the system identifies and measures these substances based on the absorption patterns in the transmitted light spectrum.
To ensure high measurement quality, the OPSIS system continuously calculates error margins for each measured value while simultaneously monitoring the intensity of the received light. This enables both automatic data validation and system verification.
The OPSIS system is fully modular and can be expanded or upgraded at any time. As standard, the analyzer includes interfaces for a multiplexer to manage multiple monitoring paths and for a data logger to integrate external signals such as meteorological sensor data. In addition, the system is prepared for the integration of automatic calibration devices.
Communication interfaces allow data transmission via modem, LAN, or internet connection. In many cases, extending the system to monitor additional gases only requires a simple software upgrade.
Tehnične specifikacije
The OPSIS AR500 Analyzer is a modular multi-component analyzer designed for ambient air and fence-line monitoring based on DOAS technology.
Available models include the AR501 with one UV detector, the AR502 with two UV detectors, the AR503 with three UV detectors, the AR510 with one IR detector, the AR520 with both UV and IR detectors, and the AR550 with one IR detector.
The system supports multiple optical monitoring paths via fiber optic cables as well as operation with a multiplexerand data logger.
The system dimensions are 600 × 440 × 266 mm with a total weight of approximately 50 kg.
Power supply is provided via 115/230 V at 50/60 Hz. The power consumption is approximately 110 W.
The device is rated according to protection class IP20.
Communication options include RS232, LAN, modem, and internet communication.
The system is suitable for measuring NO, NO₂, SO₂, O₃, NH₃, HF, HCl, CO, CO₂, CH₄, Hg, and additional compounds.
Special features include a fully modular and expandable system architecture, automatic data validation, support for automatic calibration devices, and long maintenance intervals.
The OPSIS AR500 Analyzer is certified by TÜV, MCERTS, and the U.S. EPA.
