The UC-1 is a portable, battery-powered clamp-on ultrasonic flow meter designed for measuring the flow of clean liquids in metal and plastic pipes ranging from 25A to 100A.

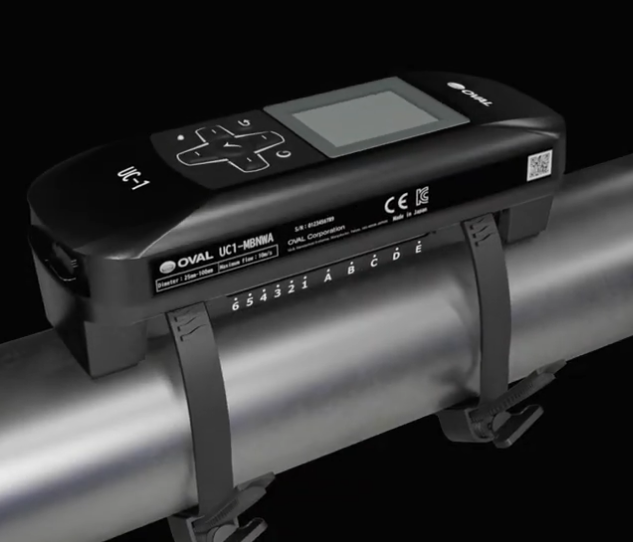

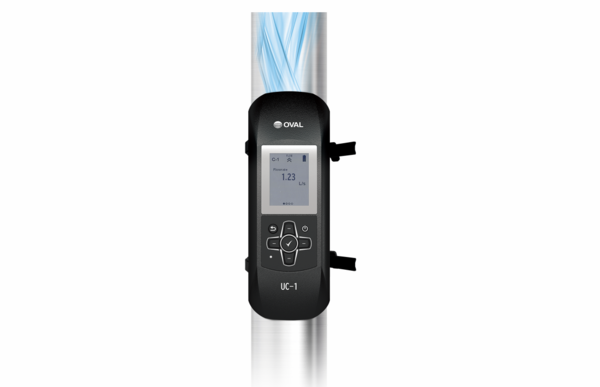

The device is mounted externally on the pipe, meaning no cutting or drilling is required. It operates using the ultrasonic transit-time principle, ensuring accurate and reliable flow measurement.
Thanks to its compact and lightweight design, the UC-1 is ideal for industrial applications, maintenance tasks, and flow monitoring systems. Its long-lasting battery operation and durable housing make it suitable for continuous use in demanding environments.
Műszaki leírás
The UC-1 is compatible with 25A–100A metal and plastic pipes.
It offers a measurement range of 0.03–10 m/s with an accuracy of ±3% and repeatability of ±1%.
The device is suitable for measuring water, oils, and general liquids within a temperature range of −20 °C to +85 °C.
The flow meter features an IP65 protection rating and operates reliably in ambient temperatures from −20 °C to +60 °C.
Its battery-powered system provides an estimated service life of approximately 10 years.

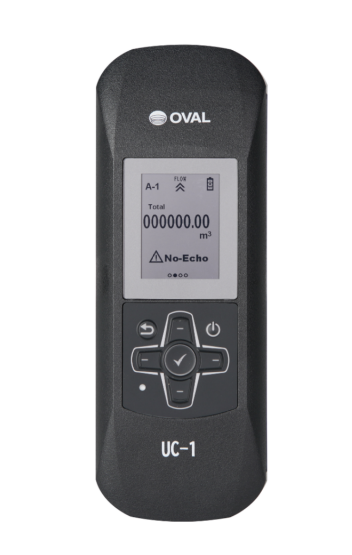

The integrated LCD display shows both the flow rate and the total accumulated volume.
The optional UC1-MBC version includes 3 NPN outputs for alarms, limit settings, pulse outputs, and additional control functions.
The unit has a lightweight design with a total weight of approximately 450–460 g.
