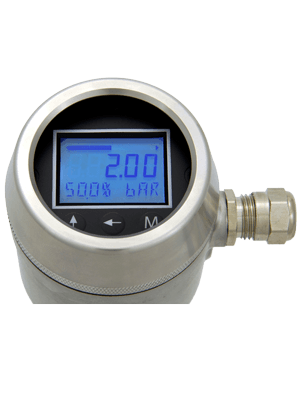

Pressure Transmitter CER-8000 with ceramic measuring cell
Opis izdelka
The CER-8000 is an all stainless pressure transmitter with ceramic measuring cell. Suitable for vacuum and pressure measurement on liquids and gasses. Zero and span can be adjusted internally in wide ranges.
Tehnične specifikacije
Measuring ranges min. max. 2.5…350 bar
Process temperature -20 °C…+80 °C
Accuracy 0,2% of adjusted span
Process connections Threaded ½” BSP or NPT male
Turn down 4:1
Output 4-20 mA, 2-wire
Adjustment Zero and span adjustable internally
Power supply 12 - 36 Vdc (Ex: 13 - 26,5 Vdc)
Protection IP66 (option IP68)
Ambient temperature -30 °C...+70 °C
Diaphragm material Ceramic sensor
Sealing Viton O-Ring (standard) other materials on request
Wetted parts AISI 316L
Electronics housing AISI 304, option AISI 316
Certificates/approvals
Explosion safety : ATEX Ex-ia, IECEx Ex-ia, EAC Ex-ia
Marine approvals : Lloyd's, DNV, BV, CCS, ABS, KR
Functional safety : SIL2
