3000

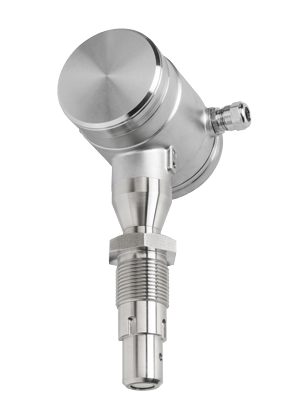

Intelligent pressure transmitter 3000 with flush mounted ceramic sensor

Opis izdelka

Series 3000 – Pressure and Level Transmitters with Ceramic Sensor

The Series 3000 is a complete line of intelligent pressure and level transmitters equipped with a flush-mounted capacitive ceramic sensor. The transmitters feature a local display and three pushbuttons, allowing easy calibration and programming without test pressure. Zero and span can be adjusted quickly, while signal damping and current simulation can also be configured.

The transmitters are fully temperature compensated and available with a wide range of industrial process connections. An optional HART® protocol is also supported. The Series 3000 is particularly well suited for the pulp and paper industry, offering durable ceramic sensing technology and reliable operation under challenging conditions.

Key Features & Benefits

  • All stainless steel housing for durability
  • Easy calibration without test pressure by three pushbuttons and display
  • Accuracy of 0.2 % (optional 0.1 %)
  • Measuring ranges from 0–100 mbar up to 0–50 bar
  • Turn down ratio of 10:1
  • Active temperature compensation
  • Wide selection of industrial process connections
  • Optional HART® protocol
  • Local display with optional transparent cover for indication
  • Adjustable damping and current simulation

Tehnične specifikacije

The Series 3000 transmitters achieve an accuracy of 0.2 % of the adjusted span, with an optional accuracy of 0.1 %. The measuring ranges extend from 0–100 mbar up to 0–50 bar. The turn down ratio is 10:1. Adjustment is carried out by three pushbuttons and the local display without the need for test pressure. The output signal is 4–20 mA, with an optional HART® protocol. The power supply ranges from 12 to 36 VDC. Electrical connections are PG9 as standard, with optional M20 or ½" NPTf available. The protection grade is IP66, with IP68 as an option. The allowable process temperature range is –20 °C to +80 °C, with an optional extension up to +100 °C. The sensor is made of 99.9 % Al2O3 ceramic with standard Viton sealing, while other O-rings are available on request. Wetted parts are manufactured from stainless steel AISI 316L as standard, with Hastelloy C available as an option. The electronics housing is stainless steel AISI 304, with AISI 316 as an option. A wide range of process connections is available, including those specifically designed for the pulp and paper industry.
