Opis izdelka

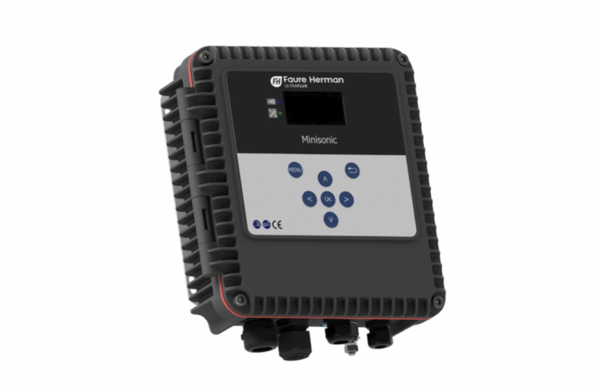

The MINISONIC is a compact and durable ultrasonic flow meter designed for precise measurements in industrial environments. Its enclosure is made of molded polycarbonate with 30% glass fiber reinforcement, ensuring excellent durability and long-term reliability.
The device is suitable for measuring liquids and supports both flow measurement in pipelines and product change detection in pipelines (ISD). In addition, the system enables the detection of pigs, spheres, and scrapers (PSD) within pipeline systems.
The MINISONIC supports pipe diameters of up to 10,000 mm and uses advanced analog signal processing with Echo Shape Control (ESC) for highly accurate measurement results. The system delivers an accuracy of up to 0.5%, repeatability up to 0.1%, and linearity up to 0.1%.
The unit can be powered by 110–230 VAC or 12–24 VDC. Average power consumption is approximately 6 W, with a peak consumption of 10 W. For industrial integration, the device includes one isolated 4–20 mA active output and two isolated contact outputs.
Communication is provided via USB and Ethernet (Modbus TCP/IP) as standard. Optional communication interfaces include HART and RS485 (Modbus RTU). An integrated recorder allows reliable storage of process data.
The MINISONIC operates within a temperature range of -20 °C to +60 °C, while the storage temperature range is -35 °C to +60 °C. The device features IP67 protection and complies with EN/IEC 60659, EN/IEC 61326-1, and EN/IEC 61010-1 standards. Please note that the system is not ATEX certified.
Tehnične specifikacije
The MINISONIC features a robust molded polycarbonate enclosure with 30% glass fiber reinforcement and supports one pipe with one chord measurement. The device is designed for measuring liquids and supports flow measurement, product change detection (ISD), and pig, sphere, and scraper detection (PSD).
It supports pipe diameters of up to 10,000 mm and uses analog signal processing with Echo Shape Control (ESC). Measurement performance includes accuracy up to 0.5%, repeatability up to 0.1%, and linearity up to 0.1%.
Power supply options include 110–230 VAC 50/60 Hz or 12–24 VDC. The device includes one isolated active 4–20 mA output, two isolated contact outputs, and communication via USB and Ethernet using Modbus TCP/IP. Optional interfaces include HART and RS485 (Modbus RTU).
The operating temperature range is -20 °C to +60 °C, with a storage temperature range of -35 °C to +60 °C. The flow meter is rated IP67 and complies with EN/IEC 60659, EN/IEC 61326-1, and EN/IEC 61010-1 standards.
