The dEX Logger Software is an integrated browser-based software solution designed for configuration, monitoring, and analysis of data loggers.
The software requires no additional installation and runs directly within a web browser. Access is available through Ethernet or USB connection.
Thanks to its intuitive graphical user interface, dEX allows easy configuration of data loggers while providing access to real-time data and historical measurements.

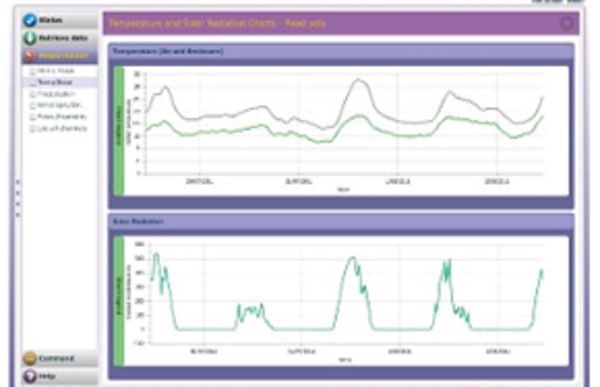

Measurement data can be displayed in graphs, tables, or graphical mimics and exported for further analysis in applications such as Microsoft Excel.
The software supports .CSV and .DBD file formats and also includes an integrated command window for direct control using predefined macros.
The dEX Logger Software is fully platform-independent and operates on Windows, Mac, and Linux systems without requiring additional applications.
The software is pre-installed on every DT80 data logger and launches automatically when connected via USB.
The integrated configuration editor with Windows Explorer-style tree view simplifies the setup of measurement schedules and sensor configurations.
Integrated wiring diagrams additionally support easy sensor connection setup.
The user interface can be customized individually, including colors, logos, and menus.
Up to 16 mimics can be displayed across 5 mimic pages, including graphical elements such as dials, bar graphs, thermometers, compass indicators, digital displays, and trend lists.
Download dEX App (Goolge Play Store)
Műszaki leírás
The dEX Logger Software operates directly within a web browser without additional installation.
Connection is provided through TCP/IP Ethernet or USB.
The software supports Windows, Mac, and Linux operating systems.
Supported web browsers include Internet Explorer, Firefox, Google Chrome, and Safari.
The software supports .CSV and .DBD file formats for data export and analysis.
Up to 16 mimics can be displayed across 5 mimic pages.
The user interface supports customizable colors, logos, and menus.
System requirements include a web browser, TCP/IP connection, Adobe Flash Player 10 or higher, and a minimum screen resolution of 1024 × 768 pixels.
The software supports real-time data display, historical data analysis, graphs, tables, macros, and direct logger control.
