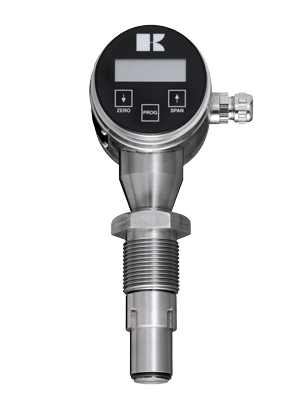

Intelligent Pressure Transmitter 2000 with metallic diaphragm
Opis izdelka
The all stainless series 2000 pressure transmitter has a flush diaphragm. Suitable for vacuum and pressure measurement on liquids and gasses. This microprocessor based transmitter can easily be programmed using the three push buttons and display.
Tehnične specifikacije
Measuring range min. max. 0,1…100 bar, optie 1000 bar
Process temperature -20 °C…+80 °C
Accuracy 0,1 % of adjusted span
Process connections 1” BSP and pulp- and paper connections with flush diaphragm, all current threaded connections
Turn down 10:1
Output 4-20 mA 2-wire, option HART protocol
Adjustment With 3 push buttons and display, without test pressure or with HART
Power supply 12 - 36 Vdc (Ex: 12 - 26,5 Vdc)
Protection IP66 (option IP68)
Ambient temperature -20 °C...+70 °C
Diaphragm material AISI 316L, option Hastelloy C or Gold plated
Wetted parts AISI 316L
Electronics housing AISI 304, option AISI 316
Certificates/approvals
Explosion safety : ATEX and IECEx Ex-nA, Ex-ia, Ex-ib and Ex-ec, EAC Ex-ia
Marine approvals : Lloyd's, DNV, BV, CCS, ABS,
Functional safety : SIL2
