ACCUBALANCE® Capture Hood 8380

The AccuBalance® Air Capture Hood 8380 is amultipurpose electronic air balancing instrument primarily used for efficiently takingdirect air volume readings at diffusers and grilles. It features adetachable micromanometer which can be used with optional probes forincreased flexibility in multiple  measurement applications.

Offering durable, trouble-free operation, this lightweight, ergonomically designed capture hood kit saves time and money by combining multiple measurement tools into one package. The AccuBalance Air Capture Hood 8380 helps you create healthy and energyefficient environments while meeting local codes,  guidelines andregulations for ventilation systems.

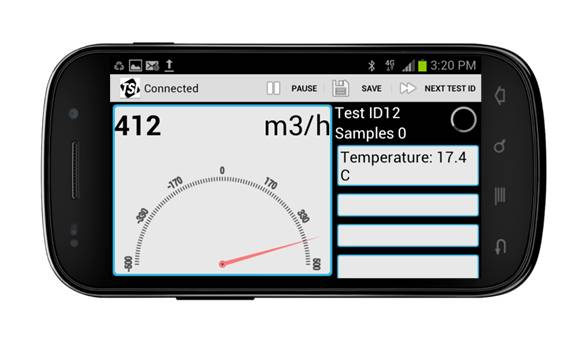

Optional LogDat™ Mobile Android™ Software connects to the capture hood's detachable micromanometer via bluetooth to remotely take readings and datalog measurements for review or export, and is ideally suited for use with the capture hood stand. It is available for purchase and download on Google Play™.



Capture Hood Features and Benefits

  • Ergonomic design and ultra light weight for easy, one-personoperation
  • Automatically senses and displays supply or return flows,saving time on the job
  • Back pressure compensation ensures accurate readings
  • Multiple hood sizes available for easy, cost effective useacross multiple jobs
  • Detachable digital micromanometer offers flexibility to use inmultiple applications

Detachable Micromanometer Features and Benefits

  • Accurately measures pressure, velocity and flow to helpyou meet industry standards
  • Auto-zeroing pressure sensor reduces user-steps and savestime
  • Automatic density correction increases reading accuracy
  • Intuitive menu structure allows for ease of use and setup
  • Large graphic display with backlight offers easy-to-useinterface
    • Displays up to five measurements simultaneously
    • On-screen messages and instructions
    • Programmed for multiple languages
  • Integrated Log-Tchebycheff duct traverse application simplifiescalculations
  • Bluetooth communications for transferring data or remotepolling
  • Includes downloading software with USB cable
  • Accommodates optional pitot, air flow (straight pitot),temperature/relative humidity, velocity matrix, or thermoanemometerprobes for use in multiple applications

Applications

  •  HVAC commissioning
  • Clean room certification
  • Troubleshooting HVAC systems
  • Testing and balancing HVAC systems



Air Velocity:
Range: 25 to 8,000 ft/min (0.13 to 41m/s) Pitot Probe; 25 to 5,000 ft/min (0.13 to 25m/s) Air Flow Probe; 25 to 2,500 ft/min (0.13 to 13m/s) Velocity Matrix
Accuracy: 3% of reading, +/-7 ft/min (0.04m/s) All Probes
Volume:
Range: 25 to 2,500 ft³ CFM (42 to 4,250m³/h) Capture Hood
Accuracy: +/- 3% of reading, +/- 7ft³/min at >50ft/min (+/-11.9m³/h at >0.25m/s)
Resolution: 1 ft³/min (1 m³/h)
Differential Pressure:
Range: +/-15 in. wc83735 Pa), 150 in. wc maximum safe operating pressure
Accuracy: 2% of reading, +/-0.001 in. wc (0.025 m wc) from 0.050 to 15 in. wc
Resolution: 0.00001 in. wc (0.00025 mm wc)
Absolute Pressure:
Range: 15 to 40 in. Hg(356 to 1016 mm Hg)
Accuracy: 2% of reading
Resolution: 0.01 in. Hg (1 mm Hg)
Temperature Probe:
Range: -40 to 250°F (-40 to 121°C) probe dependent
Accuracy: 0.5°F (0.3°C) from 32 to 160°F (0 to 71°C), typically 2.0°F (1.2°C) from -40 to 32°F (-40 to 0°C) and from 160 to 250°F 871 to 121°C)
Resolution: 0.1°F (0.1°C)
Relative Humidity Probe:
Range: 0 to 95% RH
Accuracy: 3% RH
Resolution: 0.1% RH
Statistics: min, max, average up to 1,00 readings for each measured parameters
Averaging Capability: up to 1,000 values each of measured parameters
Sampling Interval: Continuous or user selectable (10 to 600s)
Response Time: 2 to 8 s
