GMW90

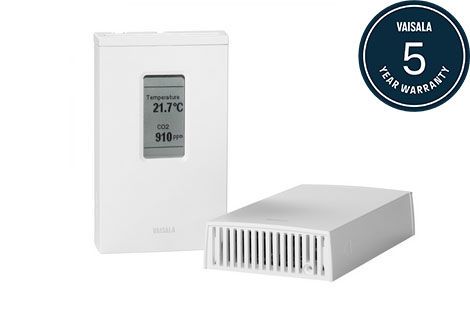

GMW90 Series Carbon Dioxide, Temperature, and Humidity Transmitters



The wall-mounted Vaisala GMW90 Series CARBOCAP® CarbonDioxide, Temperature and Humidity Transmitters are intended fordemand controlled ventilation applications. They measure carbondioxide and temperature and have an option for an additionalhumidity measurement.

GMW90 in brief:

  • A flexible CO2 transmitter family with a variety of options andfeatures
  • Both analog and digital output models available
  • Comes with a calibration certificate
  • Easy installation due to well-designed features such as snap-onelectronics, dip switches, and display
  • Convenient calibration: Choose either a field exchangeablemeasurement module or calibrate using a hand-held meter or areference gas bottle.

GMW90 family includes the following models:

  • GMW93(D) CO2+T,  voltage output (with display)
  • GMW93R(D) CO2+T+RH, voltage output (with display)
  • GMW93RA CO2+T+RH , voltage output with CO2 indicator LED anddisplay
  • GMW94(D) CO2+T, current output (with display)
  • GMW94R(D) CO2+T+RH, current output (with display)
  • GMW95(D) CO2+T, digital model (with display)
  • GMW95R(D) CO2+T+RH, digital model (with Display)





CARBON DIOXIDE

Measurement range 0 ... 5000 ppm

Accuracy

+20 ... +30 °C (+ 68 ... + 86 °F)                                                            ± (30 ppm + 2 % of reading)

+10 ... +20 °C, +30 ... +40 °C (+50 ... +68 °F, +86 ... +104 °F)             ± (35 ppm + 2.7 % of reading)

-5 ... +10 °C, +40 ... +55 °C (+23 ... +50 °F, +104 ... +131 °F)              ± (45 ppm + 3.8 % of reading)

Stability in typical HVAC applications

Total accuracy at room temperature ±75 ppm at 600 and 1000 ppm incl. 5 years drift*

Carbon dioxide sensor Vaisala                       CARBOCAP® GM10



TEMPERATURE

Measurement range -5 ... +55 °C (+23 ... +131 °F)

Accuracy

+20 ... +30 °C (+68 ... +86 °F)                                                               ±0.5 °C (± 0.9 °F)

+10 ... +20 °C, +30 ... +40 °C (+50 ... +68 °F, +86 ... +104 °F)              ±0.6 °C (± 1.08 °F)

-5 ... +10 °C, +40...+55 °C (+23 ... +50 °F, +104 ... +131 °F)                 ±0.8 °C (± 1.44 °F)

Temperature sensor                         Digital temperature sensor



RELATIVE HUMIDITY

Measurement range 0 ... 95 %RH

Accuracy Temperature range +10 ... +40 °C (+50 ... +104 °F)

0 ... 60 %RH              ±2.5 %RH

60 ... 80 %RH            ±3.0 %RH

80 ... 95 %RH            ±4.0 %RH

Temperature range -5 ... +10 °C, +40 ... + 55 °C (+23 ... +50 °F, +104 ... +131 °F)

0 ... 60 %RH              ±3.5 %RH

60 ... 80 %RH            ±4.0 %RH

80 ... 95 %RH           ±5.0 %RH

Stability in typical HVAC applications            ±0.5 %RH/year

Humidity sensor                                          Vaisala HUMICAP® 180R
