KAL100

KAL100 - Druckkalibriergerät mit integrierter Druckerzeugung ist österreichweit bei der Firma Industrie Automation Graz, IAG, erhältlich.

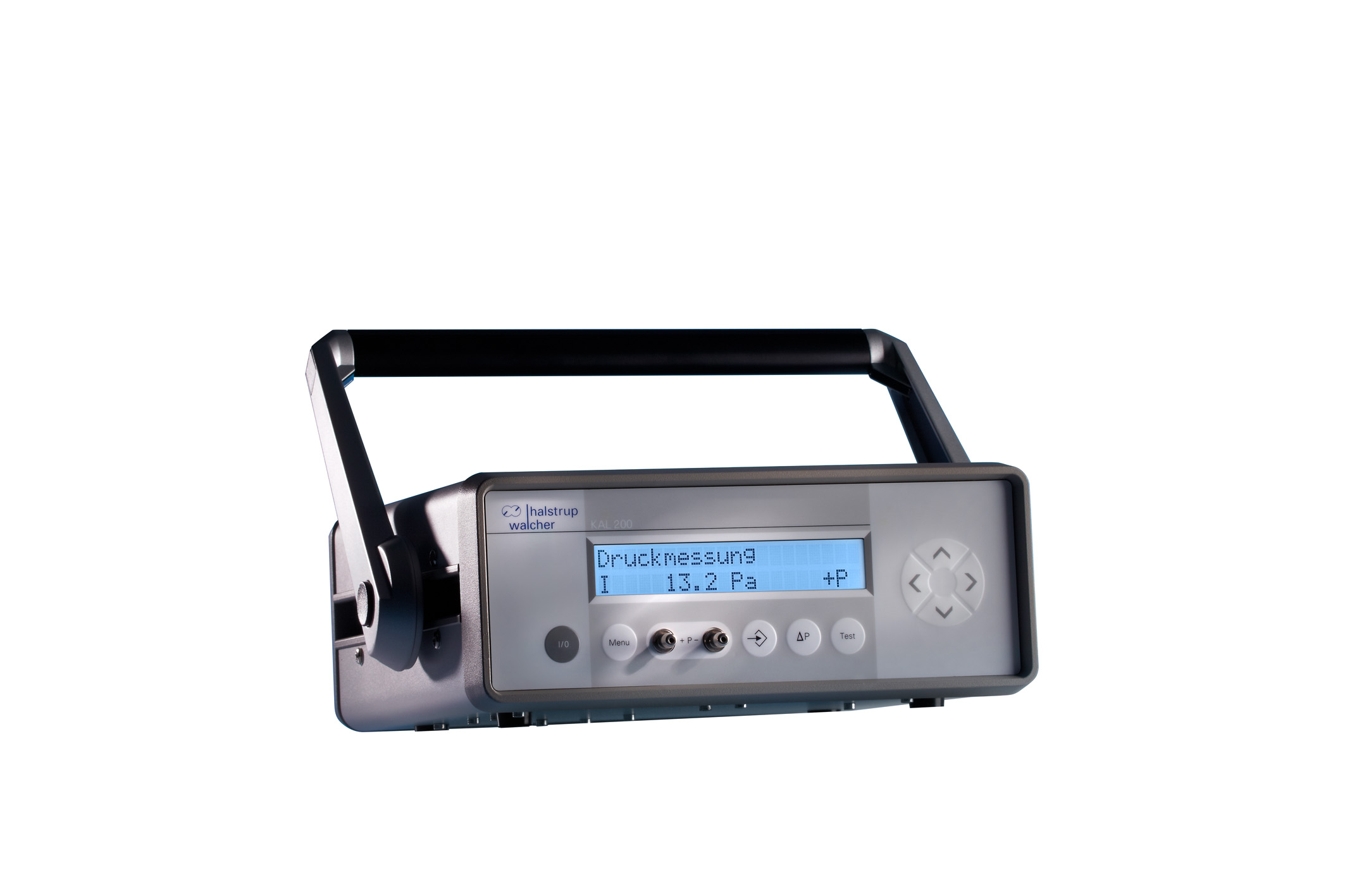

KAL100 - Pressure calibration device with integrated pressure generation

Product Description

Pressure calibration davice with integrated pressure generatorfor stationary and mobile applications.

Special features

  • High level of accuracy and long-term stability throughautomatic zero-point calibration

Technical Specification

Measurement ranges
0 .. 100 Pa, 0 .. 200 Pa, 0 .. 500 Pa
0 .. 1 kPa, 0 .. 2 kPa, 0 .. 5 kPa, 0 .. 10 kPa, 0 .. 20 kPa, 0 .. 50 kPa, 0 .. 100 kPa
± 100 Pa, ± 200 Pa, ± 500 Pa
± 1 kPa± 2 kPa, ± 5 kPa, ± 10 kPa, ± 20 kPa, ± 50 kPa, ± 100 kPa

Margin of error
± 0.2 % of max. value + 0.3 Pa (Measurement ranges > 0 .. 200 Pa / ± 200 Pa) or
± 0.5 % of max. value + 0.3 Pa (Measurement range ≤ 0 .. 200 Pa / ± 200 Pa)

Data interface
USB port (optional)

Input / power supply (test objects, optional)
0 .. 10 V or 0/4 .. 20 mA
Accuracy: 0.2 % of max. value
24 VDC / 100 mA
