Differential pressure transmitter P26

The intelligent differential pressure transmitter P26 with a scalable measuring range is available throughout Austria from Industrie Automation Graz, IAG.

Differential pressure transmitter P26

The intelligent differential pressure transmitter P26 with a scalable measuring range is available throughout Austria from Industrie Automation Graz, IAG.

Product Description

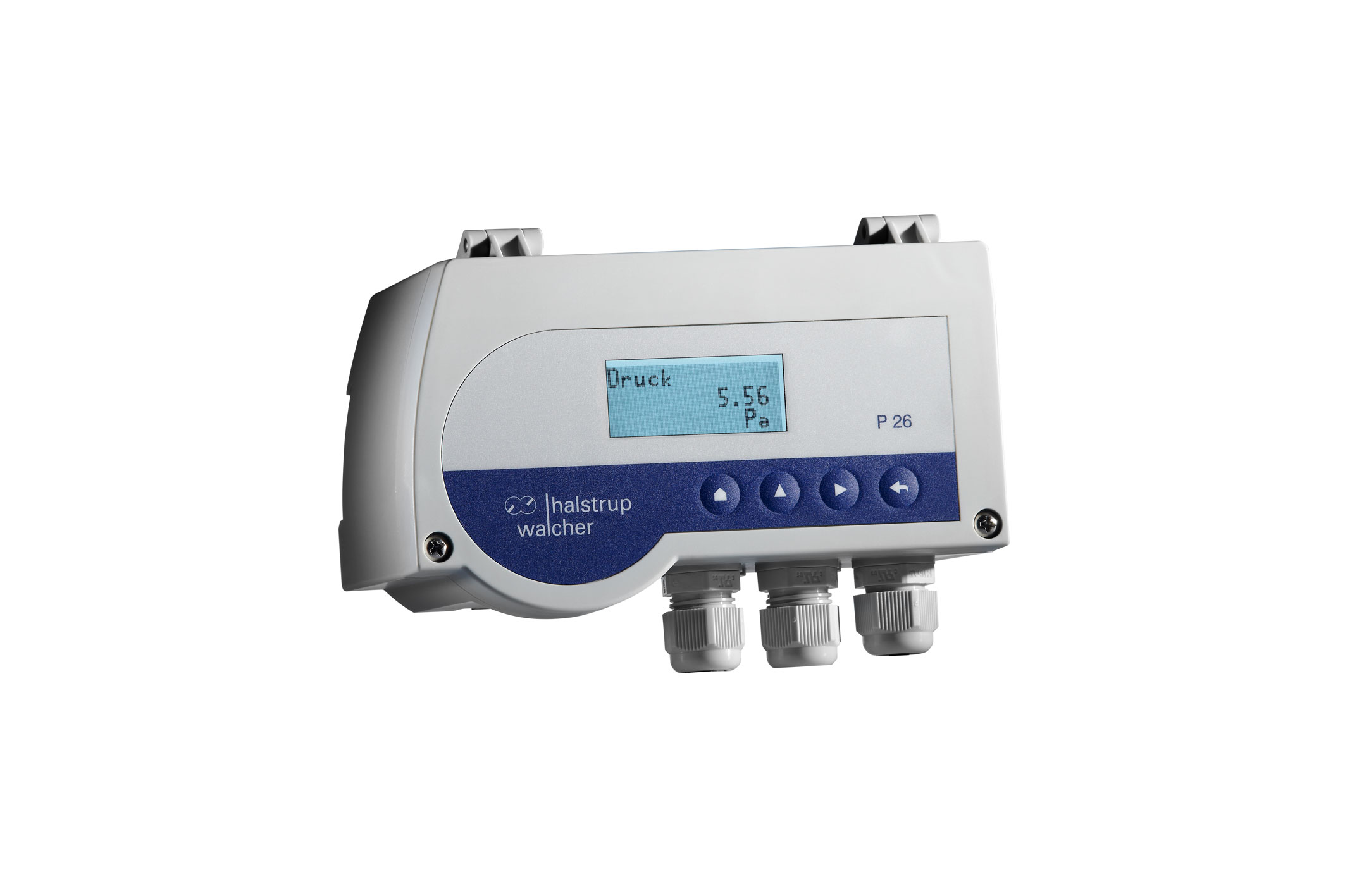

Differential pressure transmitter P26 with scalable measuring range and a high level of overpressure protection

Special features:

  • High level of accuracy and long-term stability through automatic zero-point calibration
  • Measurement of differential pressure or volumetric flow / flow rate possible
  • Easy configuration of the measuring range, analog output, time constants and units via PC or keyboard (optional)
  • USB interface (optional)
  • Display with keyboard for configuration of the pressure transmitter (optional)
  • Multilingual menu (English/German/Italian/French)
  • Suitable for top-hat rail mounting and wall surface installation
  • 2 floating switching relays (optional)
  • Integrated power adapter for 115/230 VAC power supply
  • Silicon-free materials for parts in contact with medium
  • Output signal can be configured 0 .. 10 V, 0/4 .. 20 mA or ± 5 V
  • Selectable attenuation of the output signal from 0 .. 60 s
  • Can be calibrated
  • Highly stable measurements thanks to cyclical self-calibration of the zero point
  • High level of overpressure protection even in the smallest measuring ranges

The P26 differential pressure transmitter is designed for pressure monitoring applications in cleanrooms, laboratories, pharmaceutical plants and operating theatres as well as for special uses in machine and plant construction. As well as measuring the differential pressure, the instrument also records positive and negative overpressures as well as flow rates or volumetric flows.
The measuring range is scalable in the range from 10 .. 100 %. Two optional contact points allow the user to connect visual or audible alarms that are triggered any time values rise above or fall below specified limits. The transmitter can be configured easily via an USB interface (optional) with software. This can also be performed using a keyboard and display (optional). The measured values can be displayed in all standard units. A selectable time constant allows the transmitter to be adjusted perfectly to the pressure conditions and thus ensures a stable output signal. The P 26 can be mounted either on a wall or on top-hat rails.

Technical Specification

Features Differential pressure transmitter P26 with scalable measuring range and a high level of overpressure protection:

  • Measurement ranges: 10 / 50 / 100 / 250 / 500 Pa, 1 / 2.5 / 5 / 10 / 20 / 50 / 100 kPa, freely scalable from 10 .. 100 % within a measurement range (others available on request)
  • Margin of error (0.3 Pa margin of error for the reference):  ± 0,2 % or ± 0,5 % FS (for measurement ranges ≤ 50 kPa)
  • Output (linear / root-extracted): 0 .. 10 V (RL ≥ 2 kΩ), 0 .. 20 mA (RL≤ 500 Ω), 4 .. 20 mA (RL≤ 500 Ω), ± 5 V (RL ≥ 2 kΩ), (output signals can be configured freely)
  • Power supply, 24 VAC/DC, ± 10 %, 24 VAC, +6 % (with galvanic seperation), 230/115 VAC, -15 %
  • Interface (optional): USB, data cable supplied, External zero-point calibration
  • Display (optional): multi-coloured LCD and keyboard
