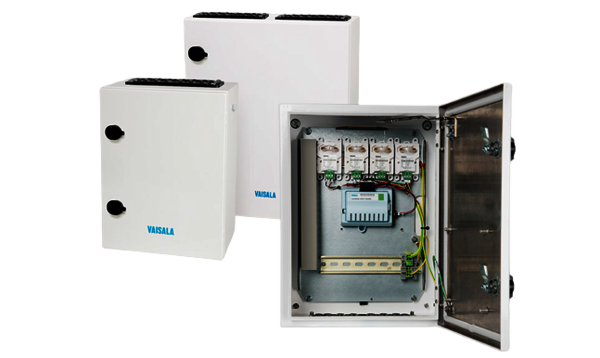

The CAB100 is designed for continuous monitoring and alarming of cleanroom and industrial areas. The cabinets provide centralized integration of transmitters with the Vaisala viewLinc Continuous Monitoring System. The Vaisala CAB100 is an instrument panel that integrates Vaisala’s world-class sensors for monitoring humidity, temperature, differential pressure and many other parameters into a simple, pre-configured cabinet.
This solution provides real-time monitoring, alarming and reporting with the Vaisala viewLinc continuous monitoring software. Cabinets are configurable to your application requirements, with options for differential pressure transmitters, analog inputs for the connection of remote transmitters and safety barriers to limit voltage in hazardous areas that require Intrinsically Safe devices. Cabinet devices can be changed or expanded as needed.
|CAB100A Small||CAB100B Large|
|External dimensions cm||40 x 30 x 20 cm||60 x 50 x 20 cm|
|Maximum # of channels|| |
4 Pressure | 4 Analog | 4 Safety Barriers
or 4 Galvanic Isolators
12 Pressure | 32 Analog | 16 Safety Barriers
or 12 Galvanic Isolators
|Maximum # of transmitters||1 - 4 depending on configuration||1 - 32 depending on configuration|
|Regulatory Compliance||EN/IEC61326-1 (Basic electromagnetic environment)||EN55032 Class B IEC/UL/EN 61010-1 IP66/NEMA 4|
