AD1000

Product Description

Absolute pressure transmitter for measuring absolute pressuresin closed Systems.

Special features

• High level of accuracy and long-term stability

• Little zero point drift or hysteresis; largely independent oftemperature

• Reduction can be performed to adjust to the altitude of theplace of installation

• Available for a variety of measuring ranges, output signals andsupply voltages

• Available with display (optional)

• Can be calibrated

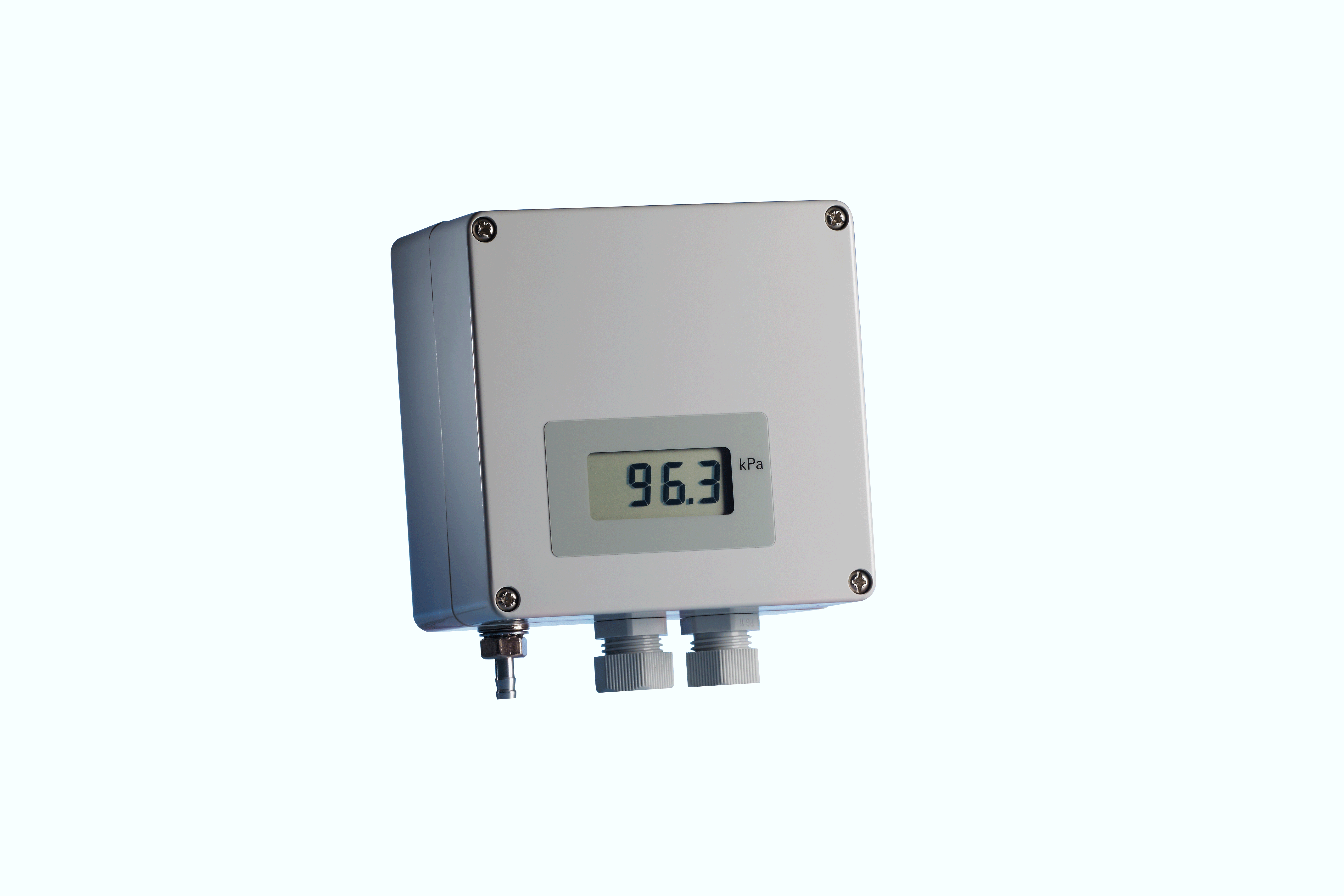

The AD 1000 absolute pressure transducer is designed fordisplaying atmospheric pressure (BA 1000) and

absolute pressure. At the heart of the unit is an evacuatedmeasurement cell made from an elastic copper

material. The deflection of the measurement cell due to absolutepressure is measured inductively without

making contact. The transmitter emits an electrical outputsignal proportional to the absolute pressure. The

device can be powered using a 24 VDC power supply or a varietyof AC voltages. The pressure port is led

through in the AD 1000 making it suitable for measuring absolutepressures in closed systems.

Technical Specification

Measuring ranges
0 .. 50 kPa
0 .. 100 kPa
80 .. 120 kPa
90 .. 110 kPa
100 .. 0 kPa

Power supply
24 VDC, +20 % / -15 %
24 VAC, +6 % / -15 %
115 VAC, +6 % / -15 %
230 VAC, +6 % / -15 %

Margin of error
± 1 % of measurement range
Reference ± 0.5 hPa with respect to sea level

Output signals
0 .. 10 V (R_L ≥ 2 kΩ)
0 .. 20 mA (R_L ≤ 500 Ω)
4 .. 20 mA (R_L ≤ 500 kΩ)

LCD (optional)
3 1/2 digit or 4 1/2 digit

Reduction
0 .. 850 m above sea level
(please indicate when placing your order)

Documentation

• AD1000.en_01.pdf
