HMP5

The humidity and temperature probe HMP5 for high temperatures is available throughout Austria from Industrie Automation Graz, IAG.

Relative Humidity and Temperature Probe HMP5 for High Temperatures

Product Description

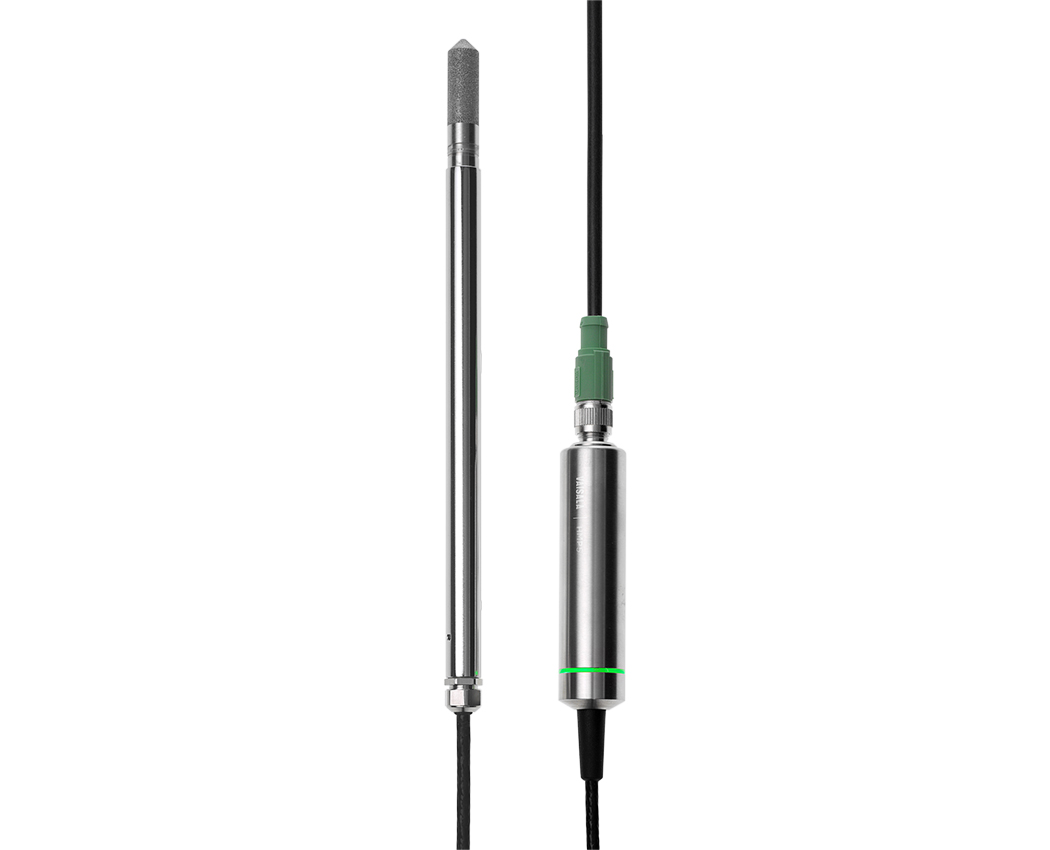

The Vaisala HMP5 humidity and temperature probe

is designed for high-temperature applications such as drying ovens, dough dryers, and industrial kilns. With its precise measurements and excellent chemical resistance, it ensures reliability even in demanding processes. The probe features a 250 mm length, allowing easy installation through insulation materials. Its sensor cleaning function enhances long-term stability and keeps performance consistent, even in environments with chemical exposure.

Technical Specification

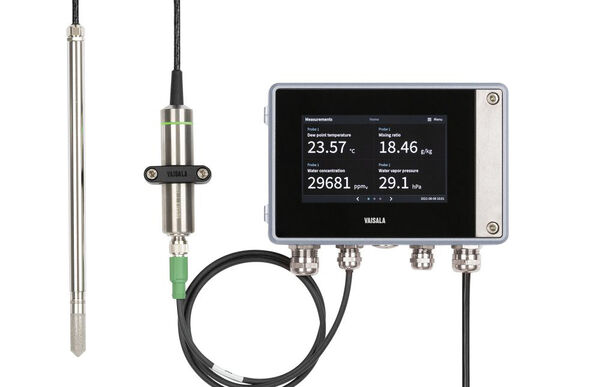

The HMP5 measures 0 … 100 %RH with an accuracy of ±0.8 %RH at +23 °C and operates in a temperature range of –70 … +180 °C with an accuracy of ±0.1 °C. The probe body withstands operating temperatures from –40 … +80 °C. Equipped with a Pt100 RTD sensor (Class F0.1, IEC 60751), it delivers high precision. An optional sensor heating/cleaning function removes chemical contaminants. Communication is provided via Modbus RTU over RS-485, and the HMP5 is compatible with Vaisala Indigo transmitters and Insight PC software. The IP66-rated housing ensures durability in harsh environments.
