HMS110 Series Humidity and Temperature Transmitters for High-Accuracy Outdoor Measurements in Building Automation
Product Description

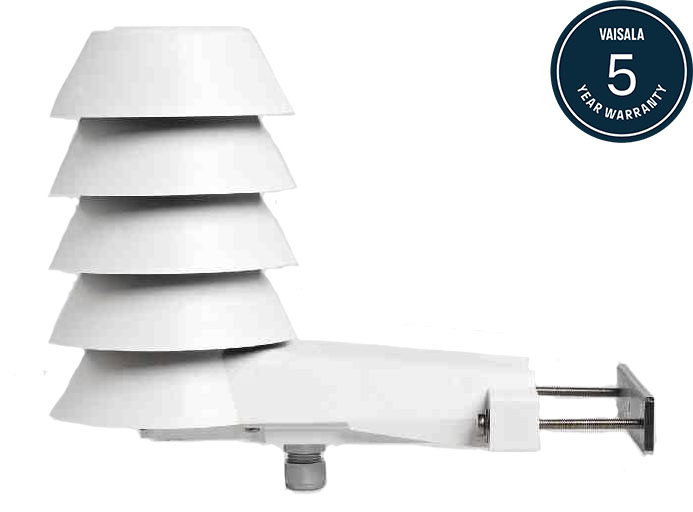

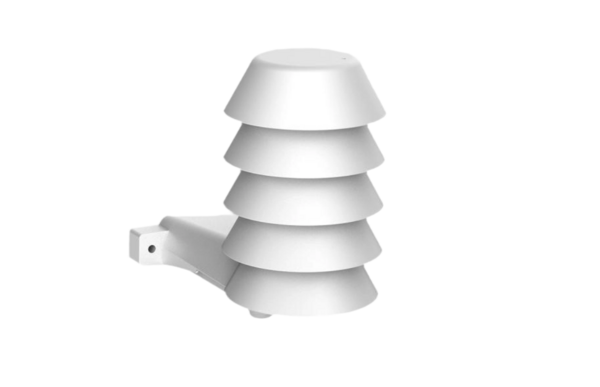

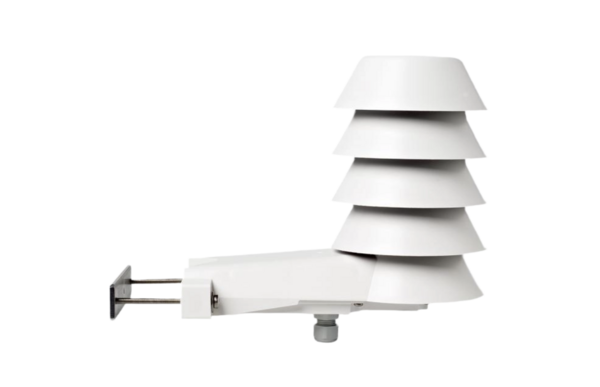

HMS110 Series Humidity and Temperature Transmitters – with Integrated Radiation Shield
The Vaisala HUMICAP® HMS110 Series transmitters are designed for high-accuracy outdoor humidity and temperature measurements in building automation applications. With a measurement accuracy of ±2 %RH, these transmitters ensure reliable and stable results, even in demanding conditions.
Each unit is equipped with a built-in radiation shield, which minimizes the effect of direct solar radiation on measurements and guarantees accurate readings under outdoor conditions.
Key Features & Benefits
- Reliable outdoor transmitters with integrated radiation shields
- ±2 %RH accuracy
- Proven HUMICAP® 180R sensor for long-lasting stability and accuracy
- Delivered with 3-point traceable calibration (certificate included)
- Default outputs: relative humidity and temperature
- Optional outputs via PC connection: dew point, wet-bulb temperature, enthalpy
- Output options: current (4…20 mA) and Modbus RTU
- On-site calibration with HM70 Hand-Held Meter or PC connection
- IP65-rated enclosure for outdoor durability
- Compatible with Vaisala Insight PC software
Technical Specification
The HMS110 Series measures relative humidity and temperature across the full 0…100 %RH range with an accuracy of ±2 %RH. By default, the transmitters provide relative humidity and temperature as output parameters, while dew point, wet-bulb temperature, and enthalpy can be selected through a PC connection.
The transmitters use the proven HUMICAP® 180R sensor, a robust and reliable humidity sensor designed for high-humidity environments. Its excellent long-term stability ensures minimal maintenance and consistent performance throughout the product’s lifetime.
Each device is housed in a rugged IP65-rated enclosure with an integrated radiation shield. This design reduces the impact of direct sunshine and ensures reliable outdoor measurement accuracy.
The HMS110 transmitters are easy to install, as they can be mounted directly on a wall or pole without any additional accessories. All connectors are clearly labeled and easily accessible, and screws are secured inside the enclosure.
Calibration can be carried out on-site using either the Vaisala HM70 Hand-Held Humidity and Temperature Meter or a PC connection. For simplified configuration and calibration, the HMS110 is fully compatible with the Vaisala Insight PC software. Each transmitter is delivered with a 3-point traceable calibration certificate.
