Methane, Carbon Dioxide and Humidity Multigas Probe
Product Description

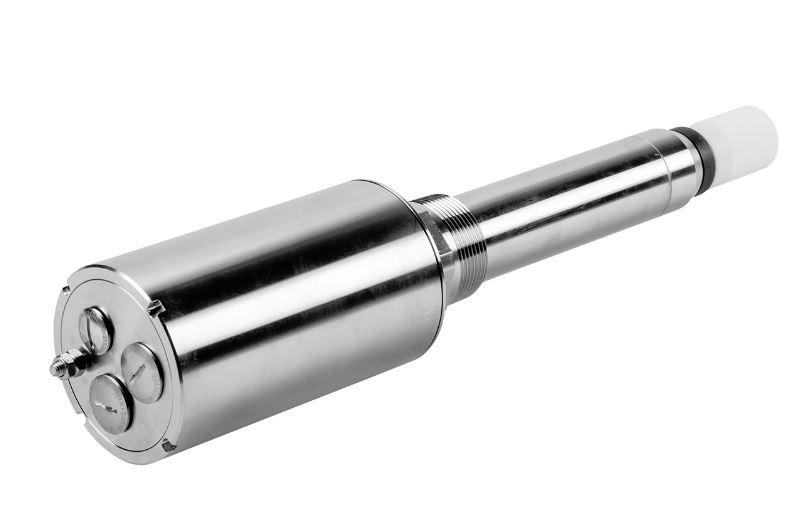

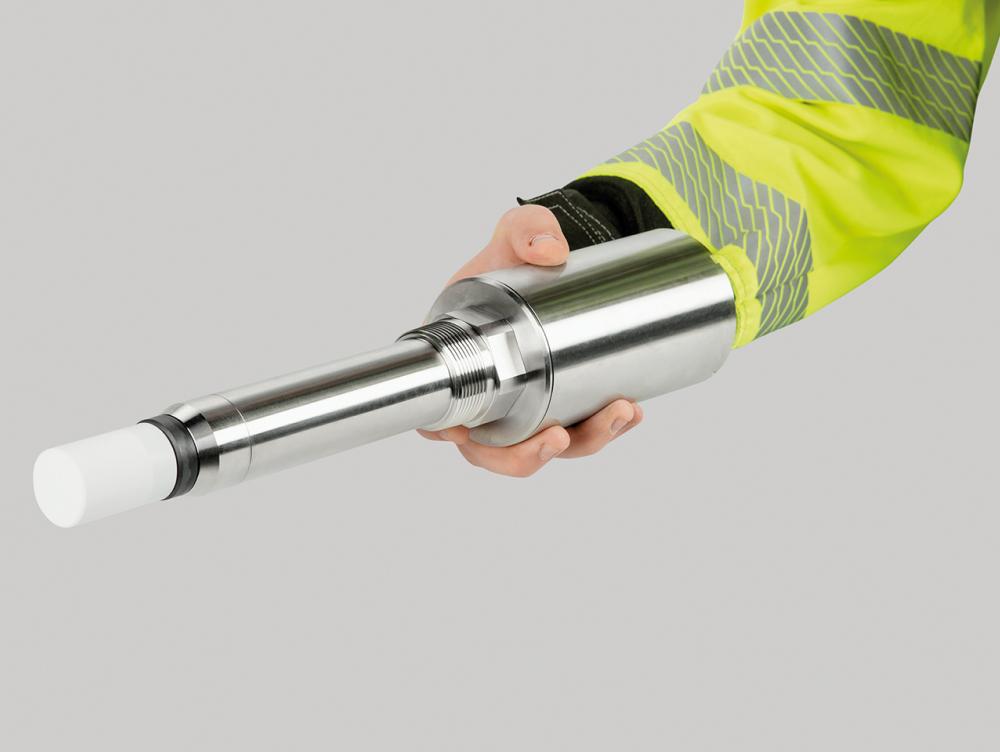

Get more value out of waste by improved decision-making, and by reducing your operating costs. Vaisala CARBOCAP MGP261 Multigas Probe for Methane, Carbon Dioxide and Humidity helps in improving your process and in protecting the Combined Heat and Power (CHP) engine. The MGP261 probe is compact in size, Ex certified, and can be installed directly into the gas line without the need for sample treatment.
The measurement probe is suitable for applications such as anaerobic digestion of landfill, industrial and municipal waste, wastewater treatment, CHP engine monitoring, as well as active carbon filter monitoring.
Technical Specification
Features
- Compact in situ probe with CH4, CO2, and H2O vapor measurement
- Superior long-term stability and repeatability with proprietary infrared technology — no calibration gases needed
- Direct installation into process: no sample treatment needed
- Certified for Ex Zone 0/1
- Probe heating eliminates condensation in wet processes
- Corrosion-resistant stainless steel housing (IP66)
- Standalone probe with digital Modbus RTU over RS-485 or 3 analog outputs (4 … 20 mA)
- Compatible with Vaisala Insight PC software
