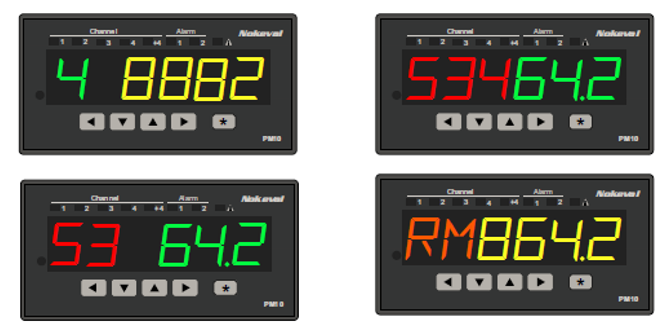

PM10 - panelmeter for 1-8 inputs

Product Description

PM10 smart meter series is the pre-eminent display on themarket. It is the result of multiple years ofdevelopment and customer feedback.

It combines many new innovations and good technicalimplementations of previous Nokeval products. There are already 16000 variations how to use PM10 and more to come.

Technical Specification

  • two input channels (with option cards 4-8 channels), Pt100, thermocouples, 4-20 mA, 0-10V/mV
  • two output channels for 4-20 mA or  0-10V outputs
  • two alarm relays
  • I/O-lines
  • multi-color six-character alphanumeric display
  • a wide range of mathematical functions
  • MicroUSB connector for MekuWin configuration use the ability to lock the cards with the screws very tightly
  • for vibration sensitive conditions
  • serial ouput RS485, Modbus protocoll
  • power supply 24 VDC
