Airborne Particle Monitor
Product Description

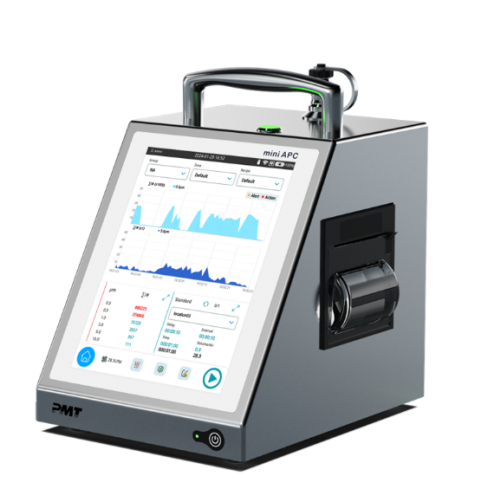

The PMT® Mini APC
is a portable particle counter weighing only 4.2 kg (without battery), designed for use in cleanrooms and critical production environments. It is housed in a sealed 316L stainless steel enclosure that resists disinfectants commonly used in cleanroom settings.
The system provides multiple flow rates (28.3 LPM, 50 LPM, 100 LPM, and dual-flow 28.3/100 LPM models) and uses long-life laser technology with a 10-year warranty. An 8″ LCD touch screen, audit trail, and multi-level user authority management ensure ease of use and full FDA 21 CFR Part 11 compliance.
The Mini APC stores up to 5 million data records with 20,000 zones and 200,000 locations, supports WiFi, USB, RJ45, and Sensor-HUB, and generates GMP and ISO-compliant reports. With an integrated HEPA filter, audible/visual alarms, and built-in printer, it ensures the highest level of accuracy, reliability, and safety.
Technical Specification
The PMT® Mini APC is available in models with 28.3 LPM, 50 LPM, 100 LPM, or dual-flow (28.3/100 LPM), supporting ambient air and compressed gas sampling. It measures particle sizes from 0.3 µm to 25 µm (A220/A230 models) or 0.5 µm to 25 µm (A210/A240 models).
The counting efficiency is 50% ±20% at 0.3 µm or 0.5 µm and 100% ±10% for larger particles, compliant with ISO 21501-4:2018 and JIS B9921:2010. Concentration limits reach >590,000 particles/ft³ at 10% coincidence loss.
It features an 8″ LCD touch screen, audit trail functionality, integrated thermal printer, audible/visual alarms, as well as WiFi, USB, RJ45, and Sensor-HUB connectivity. Up to 5 million records can be stored.
The enclosure is made of 316L stainless steel, with dimensions of 238 × 170 × 220 mm and a weight of 4.2 kg without battery or 5.2 kg with battery. The battery life ranges from 4 to 12 hours depending on the model. The warranty period is 24 months.
