Product Description

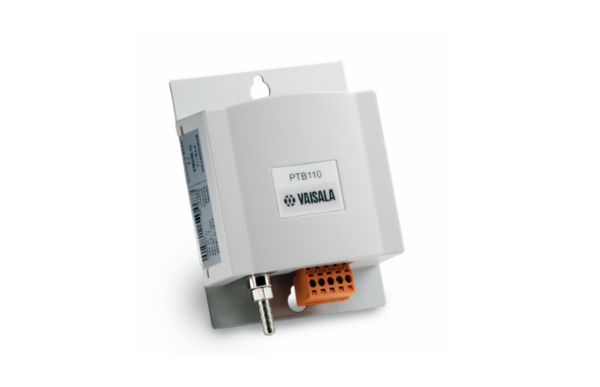

The Vaisala PTB110 is designed for accurate barometric pressure measurements at room temperature as well as for ambient pressure monitoring over a wide temperature range.
Its compact design makes it ideal for applications such as environmental pressure monitoring, data buoys, laser interferometers, as well as agriculture and hydrology.
Thanks to its very low power consumption, the PTB110 is especially suitable for data logger applications and systems where energy efficiency is critical.
Technical Specification
The device uses the Vaisala BAROCAP® sensor, ensuring high accuracy and long-term stability.
It offers multiple pressure ranges, providing flexibility for various applications.
The measurement accuracy is ±0.3 hPa at +20 °C, ensuring precise and reliable results.
The barometer features excellent long-term stability, reducing the need for frequent recalibration.
It provides analog voltage outputs of 0–2.5 VDC or 0–5 VDC, allowing easy integration into measurement systems.
An external trigger enables on/off control, improving power management efficiency.
The device has a low current consumption of less than 4 mA, making it ideal for low-power applications.
It supports DIN rail mounting (35 mm width) for easy installation in industrial environments.
