Thermal Probe TA10/15 Ex-d / ATEX

Thermal Probe TA10/15 Ex-d / ATEX - standard for Ex applications

Product Description

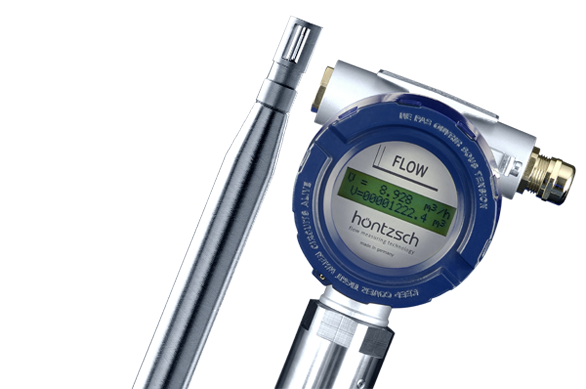

Thermal Probe TA10/15 Ex-d / ATEX

Thermal flow sensor in probe design with shaft diameter 10/15 mm and transducer UTA integrated in the Exd explosion proof connection housing. For insertion in pipes with inside diameter 40 mm.

Probe material: stainless steel.
Working temperature range -10 ... +180 °C.
Working pressure up to 16 bar.

Suitable for fixed measuring of standard flow velocity Nv [m/s], standard flow rate NV/t [m³/h] and standard quantity (volume) NV [m³].

Measuring of air/gas velocity, compressed air and gas consumption, leakage flows, laminar flow in clean rooms or machines, in outgoing air, burner supply air, ventilation and air conditioning, air in low vacuum range greater than 200 hPa.

Output signals:

4-20 mA (flow-proportional)

quantity pulse / limit value

HART communication

Technical Specification

Features for Thermal Probe TA10/15 Ex-d / ATEX:

  • Measuring range: 0.2 ... 200 m/s
  • Pressure resistance: up to 16 bar / 1.6 MPa overpressure
  • Media temperature: -10 ... +140 °C
  • Media: air (compressed air), nitrogen, methane, natural gas, argon, carbon dioxide, helium, ...
  • Displayed indicators: standard flow velocity [m/s], standard flow rate [m³/h] or [l/min], temperature [°C]
  • IP protection type: IP68 (connection housing)
  • Type of protection: ATEX category 1/2G and category 1/2D (zone 0/1, zone 20/21)
  • Sensor output: analog output 4 ... 20 mA, gas mass flow-proportional, relay for quantity measurement, configurable via HART communication and UCOM software
