TMP115

Wide-Range Temperature Probe

Product Description

Ideal for temperature-controlled chambers, cryogenic applications, incubators, LN2 tanks, blood/tissue banks and  temperature chambers, the TMP115 temperature probe uses a platinum RTD temperature sensor for superior measurement stability. The functional temperature range is from -196°C to +90°C. The probe is compatible with the VaiNet RFL100 wireless temperature data logger. The TMP115 probe comes with a 0.5  or 3 meter cord and has several cable options to meet your application needs.

Technical Specification

Easy to install & replace

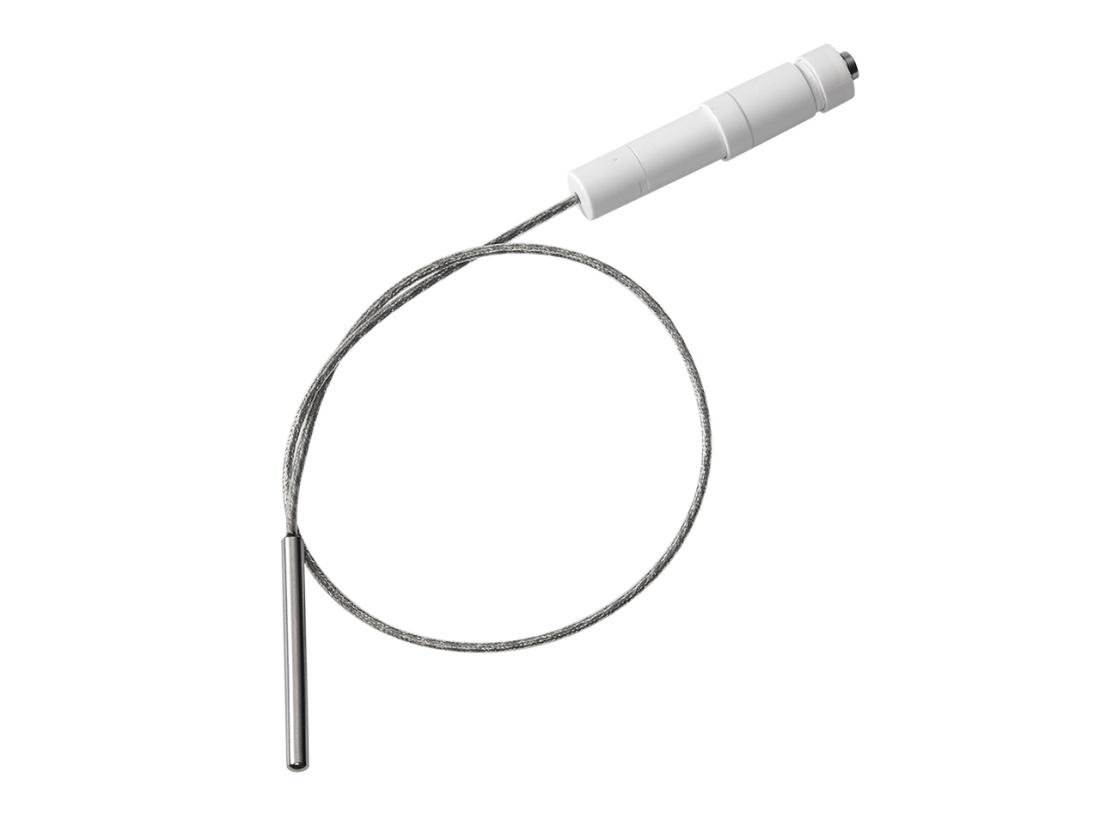

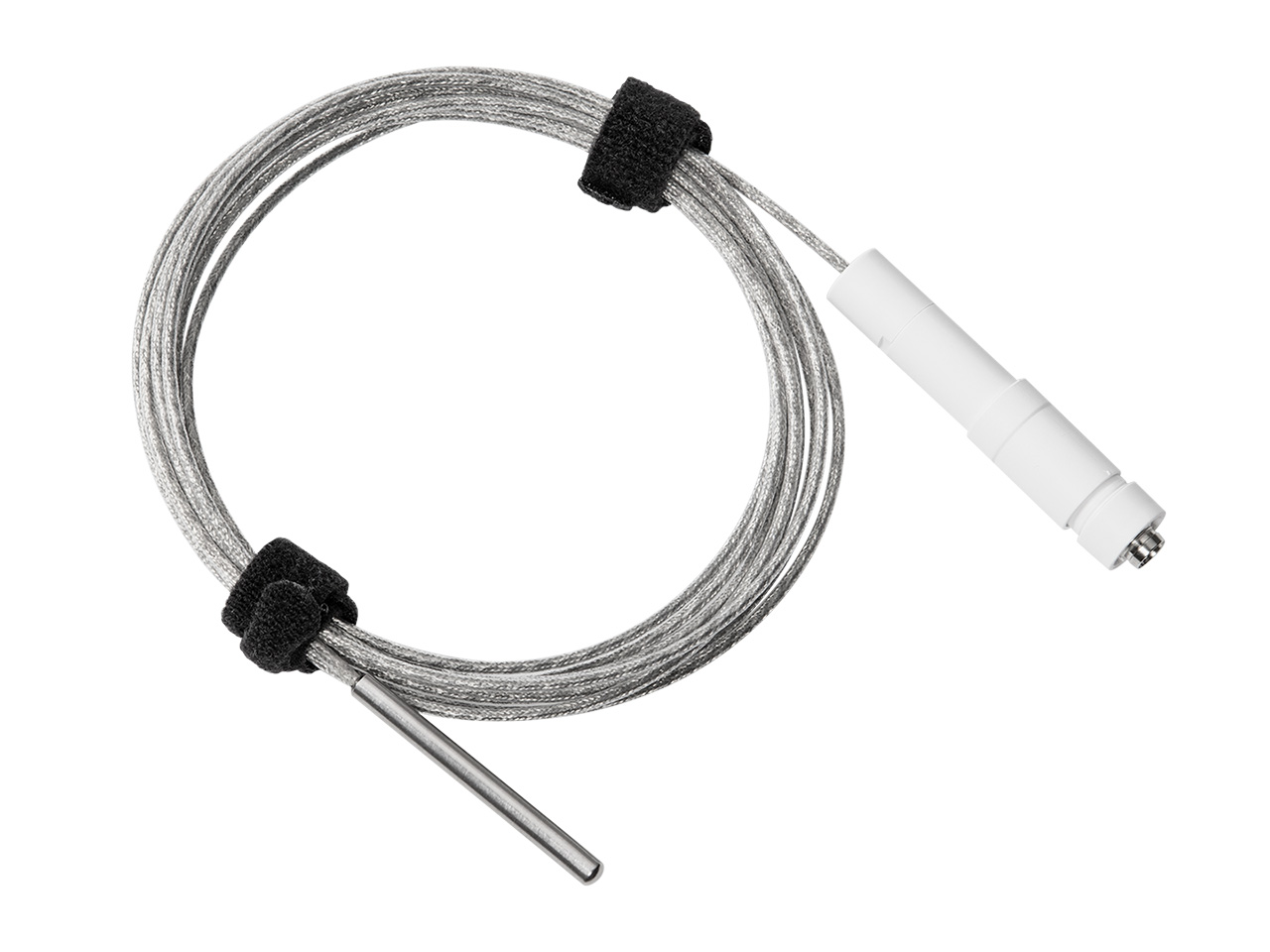

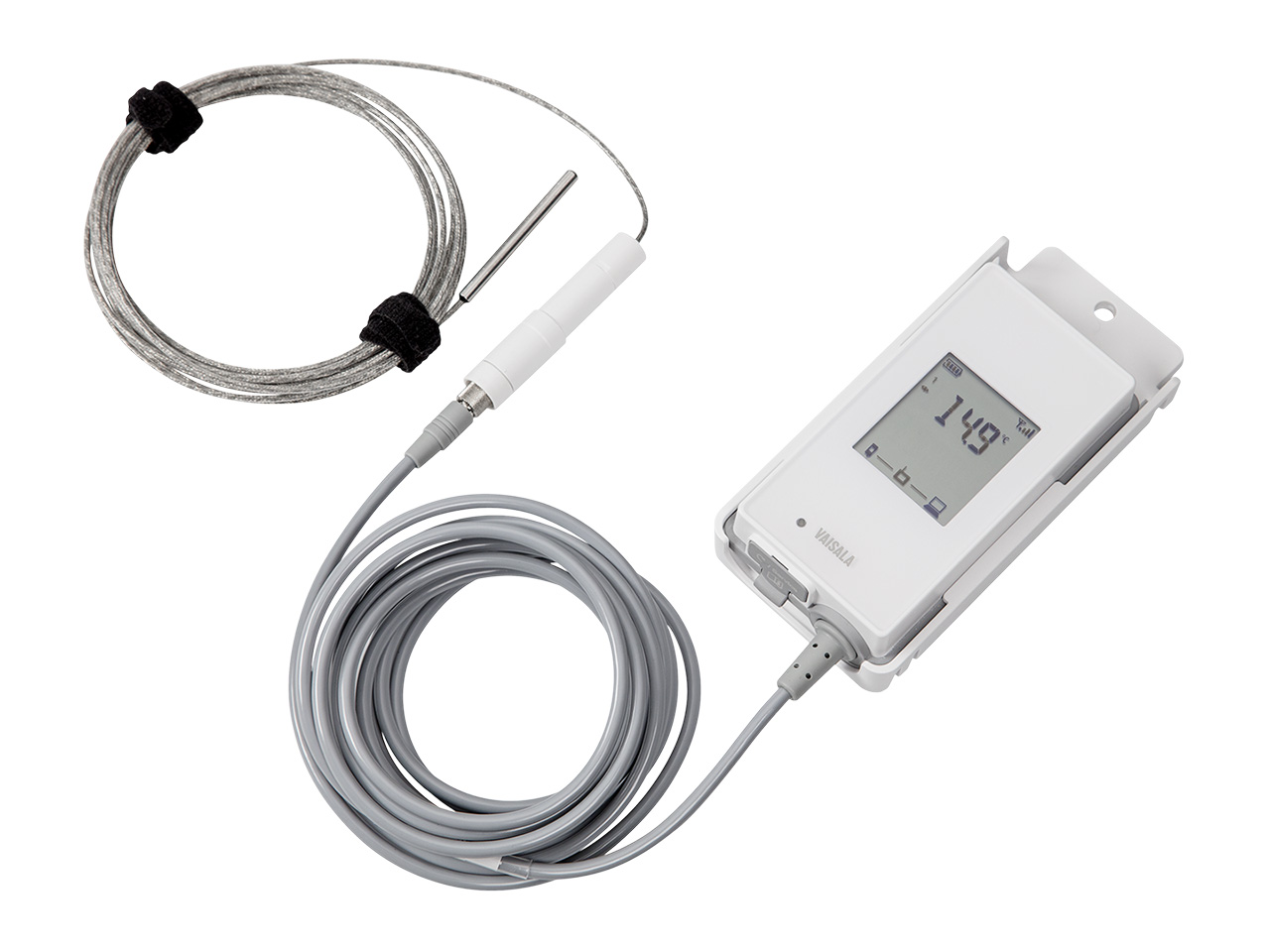

Integrates easily with the RFL100 wireless temperature data logger housing or connected using a cable: 50 cm (1 ft 7.7 in) and 3 m (9.8 ft) versions. Length includes probe body and sensor tip. Calibration is easier than ever before; simply replace the probe with a newly calibrated one. It is also possible to send the old probe back for calibration.

Robust design

Sensor tip withstands immersion in glycol and liquid nitrogen. Sensor tip diameter 4.8 mm (0.19 in). Ingress Protection: IP67 (sensor tip), IP65 (probe body).

Optional accessories

Select accessories according to your application needs: thermal damper block, flat cable for unobtrusive door seal insertion to chambers and freezers, data logger mounting options.

Documentation

Request
