Flow Measurement with Ultra Oval Type S

PD Flowmeter Ultra Oval Typ S

Product Description

A highly accurate positive displacement flowmeter capable of supporting a wide range of applications for water, petroleum, solvent, etc.

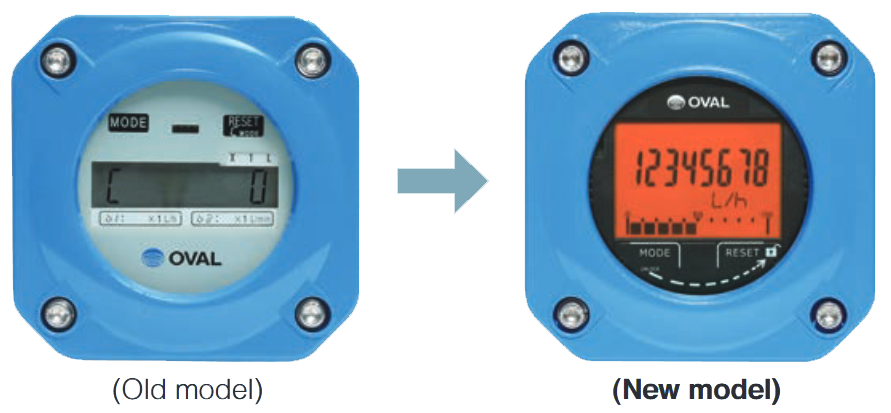

Instantaneous and total flowrates can be indicated in the field and output signal is also available.


  • High accuracy: ±0.5% RD (Option: ±0.2% RD)
  • Since the measuring chamber has almost no retention part, it can be applied to a wide range of liquids including chemical liquids.
  • Battery-powered model is also available (battery replaceable)
  • Low pressure loss, high durability
  • Setting and changing parameters, flow monitoring, etc. are available through communication
    (Smart communication unit is separately required for smart type.)

Technical Specification

Nominal size     10 to 50mm     20 to 50mm

Operating temp. range
–10 to +120°C
120 to 260°C
–60 to +60°C

Max. operating pressure
2.94MPa (depends on connection standard.)

Within ±0.5% or ±0.2% of reading
