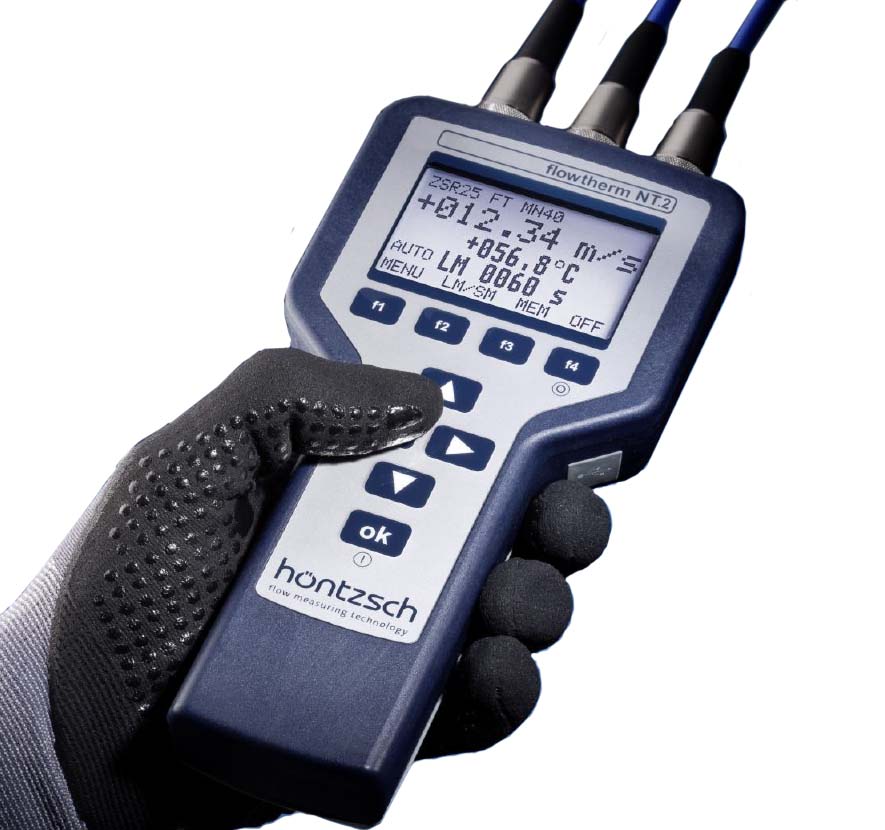

Handheld flowtherm NT.2

The FlowthermNT.2 is available throughout Austria from Industrie Automation Graz, IAG.

Handheld flowtherm NT.2 - in combination with flow sensors FA, VA, TA, Pt100 and others

The FlowthermNT.2 is available throughout Austria from Industrie Automation Graz, IAG.

Handheld flowtherm NT.2 - in combination with flow sensors FA, VA, TA, Pt100 and others

Several distinctive features make the flowtherm NT.2 a user-friendly handheld unit with a wide range of application possibilities resulting from the diversity of the connectable sensors Measurements with up to three sensors can be displayed simultaneously. The data logger allows storage of up to 40,000 values with date and time. Up to 100 different profiles can be stored for user or measuring points. Various measurement modes (also long-term measurement). Thanks to the USB interface, the logged data can be downloaded to a PC for configuration. The flowtherm NT.2 has the following inputs: flow sensors (FA, TA, VA); Pt100; 4-20 mA; 0-10 V. A 12 V supply is available for sensors in 3-wire system. Mains or battery operation.

Features for Handheld flowtherm NT.2 - in combination with flow sensors FA, VA, TA, Pt100 and others:

  • Displayed indicators: actual flow velocity [m/s], [ft/min], actual flow rate [m³/h], ..., standard flow velocity [N-m/s], ..., standard flow rate [N-m³/h], ..., mass flow [kg/h], temperature [°C], [K]
  • IP protection type: IP65 (housing)
  • Sensor input: FA; FT; FAR; VA; VAT; TA; TAT; Pt100;
  • analog input: 4 - 20 mA and 0 - 10 V
