Product Description

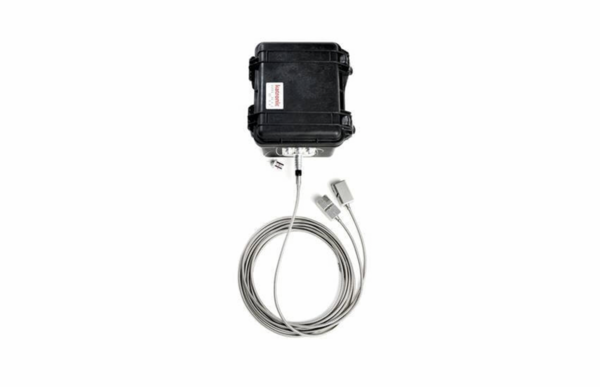

The KATflow 210 ultrasonic flow meter is engineered for demanding applications where a durable, waterproof, and portable device is essential. It is especially suited for the water and wastewater industry, delivering reliable performance under extreme conditions.
With its high-capacity battery technology, the KATflow 210 is ideal for long-term installations in remote or hard-to-access locations, even without external power supply. It operates reliably under harsh weather conditions and flooding, offering an optimal combination of robustness, autonomy, and performance.
The IP67-rated enclosure doubles as a rugged transport case, protecting the unit during field use. With a runtime of up to 100 days (and longer in power-saving mode), it is perfectly suited for extended field deployment.
Its shock-resistant IP68 ultrasonic sensors can be installed directly in trenches or manholes, ensuring accurate and reliable measurements even in challenging environments.
Technical Specification
The flow meter supports pipe diameters from 10 mm to 2,500 mm, providing broad application coverage.
Stainless steel sensors operate within a temperature range of -30°C to +130°C, suitable for various process conditions.
The device includes an internal data logger for up to 100,000 measurements, along with software for data analysis.
It offers multiple process output options, including current, open-collector, and relay, with optional wireless data transmission.
The rugged IP67 enclosure ensures protection, while the graphical display with selectable three-line view and one-hand keypad enable intuitive operation.
With three operating modes, the device optimizes power consumption and achieves a battery life of up to 100 days.
An optional wall thickness sensor is available for additional measurement capabilities.
