Mobile calibration device KAL200 - Pressure calibration device with integrated pressure generation

The pressure calibration device with automatic pressure generation for stationary and mobile use KAL200 with a scalable measuring range is available throughout Austria from Industrie Automation Graz, IAG.

Product Description

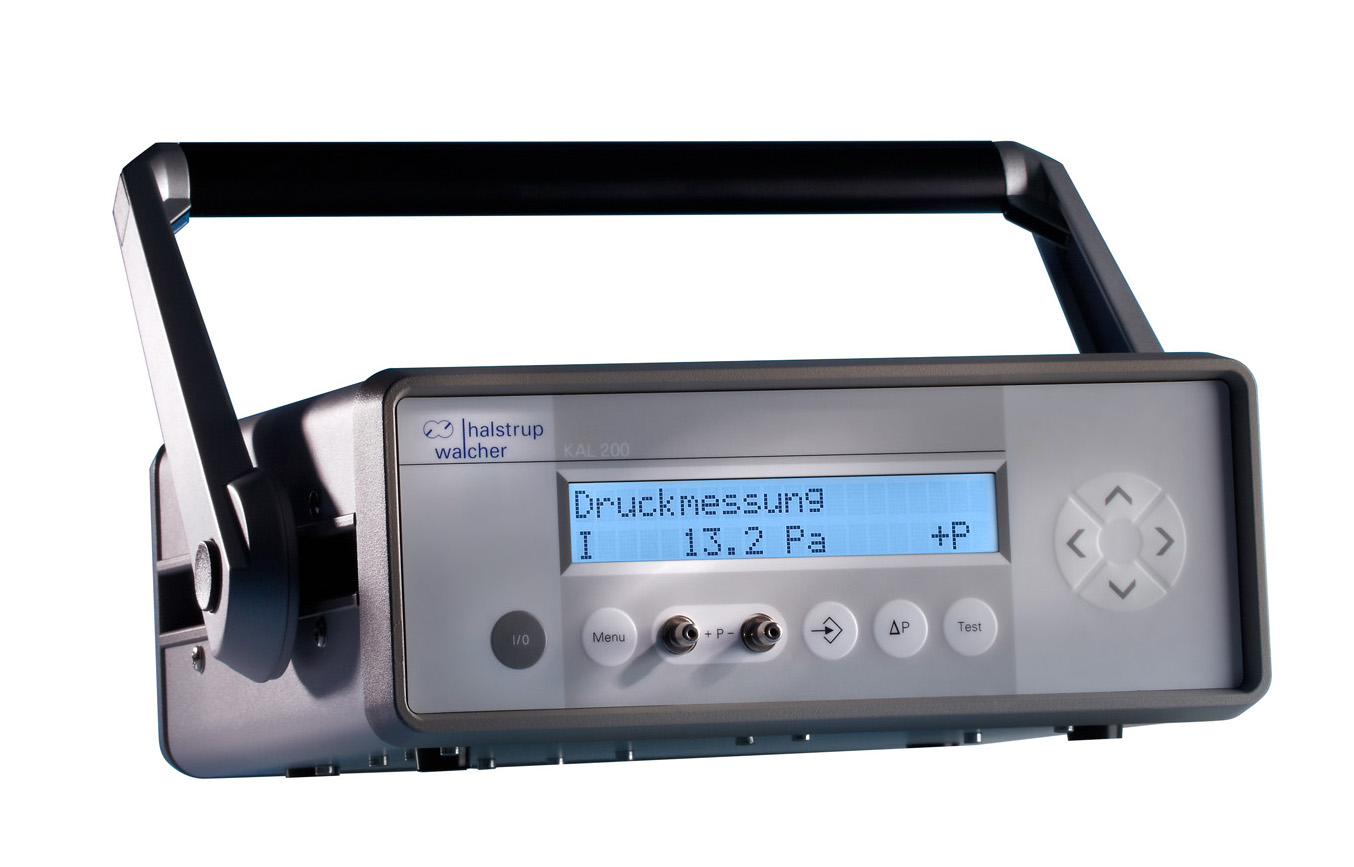

Mobile calibration device KAL200

Pressure calibration device with integrated pressure generator for stationary and mobile applications

Special features

  • High level of accuracy and long-term stability through automatic zero-point calibration
  • Simple menu navigation for unit conversion, setting calibration points and setting the measurement range
  • Menu navigation in German, English, Italian, French and Spanish
  • Generation of positive and negative differential pressures
  • Can be calibrated
  • Easy to operate and produce calibration curves via USB port and PC

The KAL 200 calibration device combines a pressure transmitter and pressure gauge. These can be used to test and calibrate pressure sensors and other pressure gauges for low pressures both quickly and easily. The desired pressure is indicated on the digital display and pressure is generated quickly and precisely through the use of a closed loop, thereby eliminating the need for an external pressure generator.

Technical Specification

Features for Mobile calibration device KAL200:

  • Measurement ranges: 0 .. 100 Pa, 0 .. 200 Pa, 0 .. 500 Pa, 0 .. 1 kPa, 0 .. 2 kPa, 0 .. 5 kPa, 0 .. 10 kPa, 0 .. 20 kPa, 0 .. 50 kPa, 0 .. 100 kPa, ± 100 Pa, ± 200 Pa, ± 500 Pa, ± 1 kPa, ± 2 kPa, ± 5 kPa, ± 10 kPa, ± 20 kPa, ± 50 kPa, ± 100 kPa
  • Margin of error: ± 0.1 % of max. value, Measurement ranges > 0 .. 200 Pa / ± 200 Pa, ± or 0.2 % of max. value, Measurement ranges 0 .. 200 Pa / ± 200 Pa, ± or 0.3 % of max. value, Measurement ranges 0 .. 100 Pa / ± 100 Pa (0.3 Pa margin of error for the reference)
  • Data interface: USB port (standard)
  • Input / power supply (test objects): 0 .. 10 V or 0/4 .. 20 mA
  • Accuracy: 0.2 % of max. value, 24 VDC / 100 mA
