Product Description

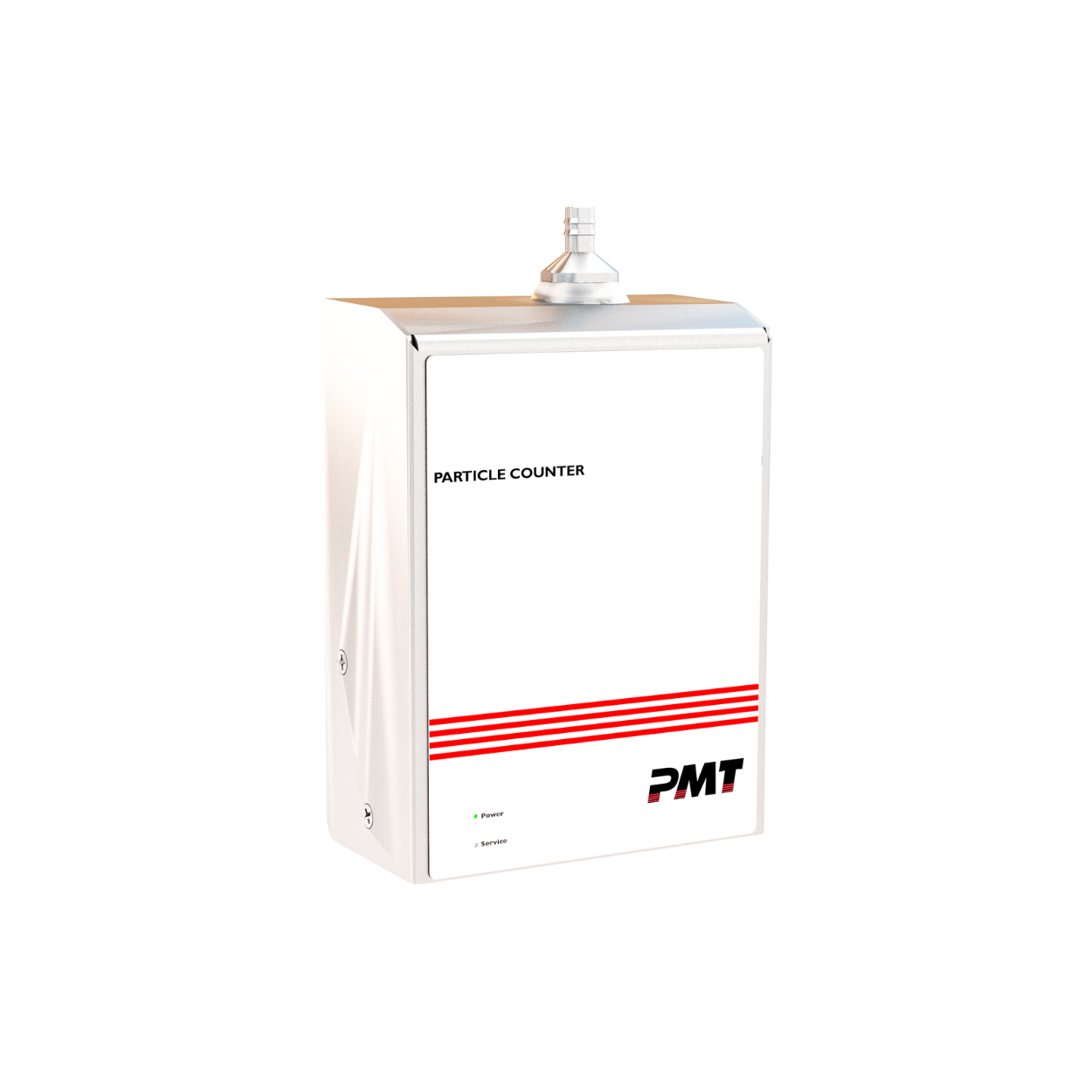

The PMT® 9501P PoE Remote Particle Counter
operates in a range of 0.5 to 25.0 μm at a flow rate of 0.1 CFM (2.83 LPM). It supports up to 6 channels (optionally 30), features an integrated vacuum pump with HEPA filter, and requires no external vacuum source.
Integration into building automation and monitoring systems is provided via MODBUS™ TCP/IP over Ethernet or WiFi (802.11 b/g). The 9501P includes LED indicators, an alarm LED ring, and an optional temperature and humidity sensor.
With its stainless-steel housing, long-life laser diode, and compliance with ISO 21501-4 and JIS B9921, it ensures high performance for cleanroom applications.
Technical Specification
The 9501P is factory-calibrated at 0.5, 0.7, 1.0, 2.5, 5.0, and 10.0 μm and supports 6 channels (optionally up to 30). Its counting efficiency is 50% at 0.5 μm and 100% for particles >0.75 μm.
It operates with a flow rate of 0.1 CFM (2.83 LPM) and a long-life laser diode. An integrated vacuum pump with HEPA filter ensures stable flow. The device provides channel alarms, an alarm LED ring, and an optional temperature and humidity sensor.
With compact dimensions (9.1 × 4.5 × 12.3 cm), stainless-steel housing, and IMS software, it is easy to integrate. The warranty is 5 years, with 1 year coverage for the vacuum pump.
