Probe ZS16 ZG1ZG2

The Probe ZS16-ZG1ZG2 is available throughout Austria from Industrie Automation Graz, IAG.

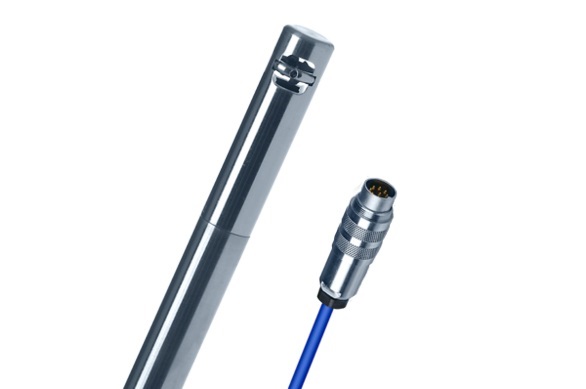

Probe ZS16 ... ZG1/ZG2 - diameter 16 mm - for small pipe diameters - with connection cable

Product Description

Probe ZS16 ZG1ZG2:

Cylindrical vane wheel sensor / insertion probe with probe diameter 16 mm for applications in pipes with small inside diameters or for insertion in small holes. Probe materials: aluminium, stainless steel or titanium. Working temperature range up to +370 °C. Suitable for fixed measuring of actual flow velocity v [m/s] and flow rate V/t [m³/h, l/min] in clean gases and liquids, briefly also in particle-laden media. They are extendable and therefore practical for applications in smoke stacks, etc.

Signal evaluation with handheld flowtherm NT, flowtherm Ex, transducer UFA and system units.

Technical Specification

Features for Probe ZS16 ZG1ZG2:

  • Measuring range: 0.6 ... 120 m/s in gases; 0.06 ... 10 m/s in liquids
  • Pressure resistance: up to 6 bar / 600 kPa overpressure
  • Media temperature: -40 ... +370 °C
  • Media: gases / liquids
  • IP protection type: IP65 (cable side)
  • Type of protection: ATEX category 2G (zone 1), (optional)
  • Sensor output: v/FA
