Product Description

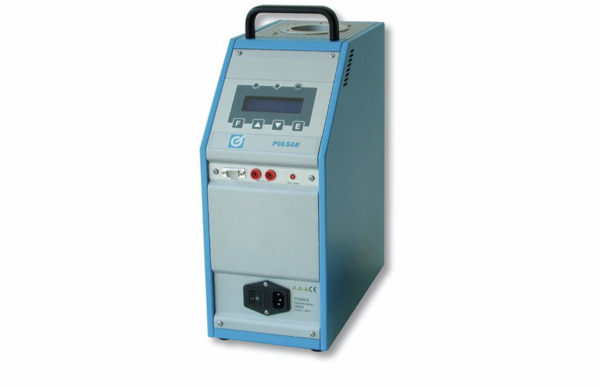

The LR-Cal PULSAR-80Cu is a portable and highly accurate metal block temperature calibrator designed to function as both a temperature source and reference instrument for testing and calibrating a wide range of temperature measurement devices.
The device operates within a temperature range of +20 °C to +550 °C and is ideal for industrial applications, laboratory environments, and portable calibration tasks.
With a large usable immersion depth of 275 mm, the PULSAR-80Cu allows highly accurate calibration of long probes and temperature sensors.
The temperature calibrator includes an integrated ramp function, supports thermostat testing, and allows computer-controlled calibration through the built-in RS232 interface.
Various interchangeable block inserts with different bore sizes are available for different probes and test devices.
Thanks to its rugged metal housing and portable design, the device is perfectly suited for industrial and mobile applications.
Technical Specification
The LR-Cal PULSAR-80Cu operates within a temperature range of +20 °C to +550 °C.
The temperature display provides an accuracy of ±0.3 °C with a resolution of 0.01 °C or 0.1 °C in °C or °F.
Temperature stability is rated at ±0.05 °C at 450 °C.
The maximum heating rate is 9 °C per minute, while the maximum cooling rate is 1.6 °C per minute.
Temperature uniformity at 300 °C is rated at ±0.1 °C radial uniformity at 175 mm immersion depth and ±0.3 °C axial uniformity at 165 mm immersion depth.
The block depth is 275 mm and is designed for insert sleeves with a diameter of 60 mm.
Power supply requirements are 230 VAC, with an optional 115 VAC version available.
Power consumption is 1700 VA.
An RS232 interface is included for communication and calibration tasks.
The rugged housing is made of durable metal.
The LR-Cal PULSAR-80Cu weighs approximately 10 kg and has dimensions of 170 × 450 × 330 mm.
