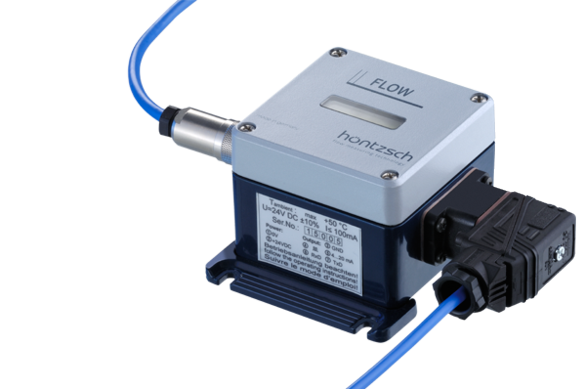

Transducer U10B - for thermal flow sensors TA10 and TA Di

Product Description

Two free adjustable analog outputs 4-20 mA, relay output (limit value or quantity pulse), M-Bus output. Power supply 24 V DC.

Configurable via an optional keypad in the housing lid or via WiFi interface.

Technical Specification


  • Displayed indicators: standard flow rate [m³/h] or [l/min], mass flow [kg/h], standard volume [m³], mass [kg], standard flow velocity [m/s]
  • IP protection type: IP65
  • Type of protection: ATEX categorie 3G and 3D (zone 2 and 22) (option)
  • Sensor input: for sensors TA10 and TA Di with thin-film sensor element
  • Sensor output: 2 analog output 4-20 mA, linear, freely configurable, relay for quantity pulse, WiFi (optional), M-Bus (optional)
