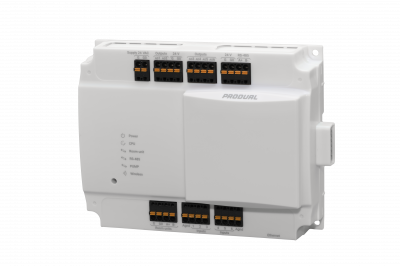

WBU base station for Produal Proxima® MESH wireless network
Product Description
WBU is a base station for Produal Proxima® MESH wireless network transmitters and input modules. The transmitter information can be read via Modbus or through the 6 analogue outputs. The base unit supports Modbus RTU and Modbus TCP.
Technical Specification
Specifications:
- Frequency: 2,4 GHz
- Input: 100 wireless transmitters
- Input: 6 x analogue input
- Output: 6 x analogue output
- IP protection class: IP22
- Ambient temperature: 0...50 °C
- Ambient humidity: 0...85 %rH
- Mounting with screws on wall or on 35 mm DIN rail
- Materials: PC plastic
- Dimensions:186 x 136 x 55 mm
