Product Description

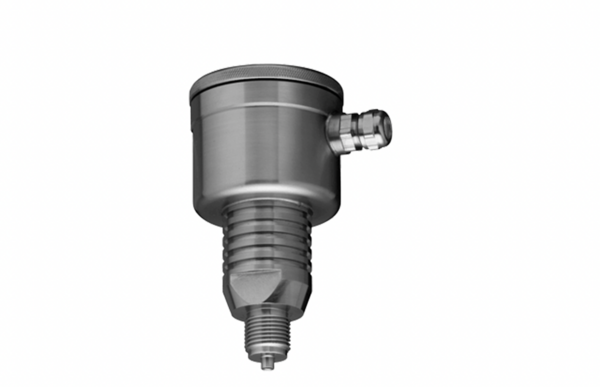

The CER-8000 is a high-quality stainless steel pressure transmitter with an integrated ceramic sensing element, specifically designed for precise vacuum and pressure measurement in liquids and gases.
The device is ideal for industrial applications, process automation, marine environments, and hazardous areas.
Thanks to its robust AISI 316L stainless steel construction and durable ceramic sensor technology, the CER-8000 offers excellent long-term stability and reliable performance even under demanding operating conditions.
Zero point and span can be internally adjusted over wide ranges, allowing flexible adaptation to different process requirements.
The pressure transmitter supports a standard 4–20 mA two-wire output and is equipped with multiple international certifications for explosion protection, marine applications, and functional safety.
Technical Specification
The CER-8000 supports pressure ranges from 2.5 to 350 bar.
The allowable process temperature range is −20 °C to +80 °C, while the ambient temperature range is −30 °C to +70 °C.
Measurement accuracy is rated at 0.2% of adjusted span.
Available process connections include ½" BSP or NPT male threads.
The device offers a 4:1 turndown ratio.
Output signals are provided through a 4–20 mA two-wire configuration.
Zero point and span are internally adjustable.
Power supply requirements are 12 to 36 VDC.
The CER-8000 is rated IP66 as standard, with an optional IP68 version available.
The sensing diaphragm is based on a durable ceramic sensor.
A Viton O-ring is used as the standard sealing material, while alternative sealing materials are available on request.
All wetted parts are made from AISI 316L stainless steel, while the electronics housing is manufactured from AISI 304 stainless steel. An optional AISI 316 stainless steel housing is also available.
The CER-8000 includes multiple international certifications and approvals including ATEX Ex-ia, IECEx Ex-ia, EAC Ex-ia, Lloyd’s, DNV, BV, CCS, ABS, KR, and SIL2 functional safety certification.
