HMP4

Die Feuchte- und Temperaturfühler HMP4 für hohen Druck ist österreichweit bei der Firma Industrie Automation Graz, IAG, erhältlich.

Relative Humidity and Temperature Probe HMP4 for High Pressures

Die Feuchte- und Temperaturfühler HMP4 für hohen Druck ist österreichweit bei der Firma Industrie Automation Graz, IAG, erhältlich.

Product Description

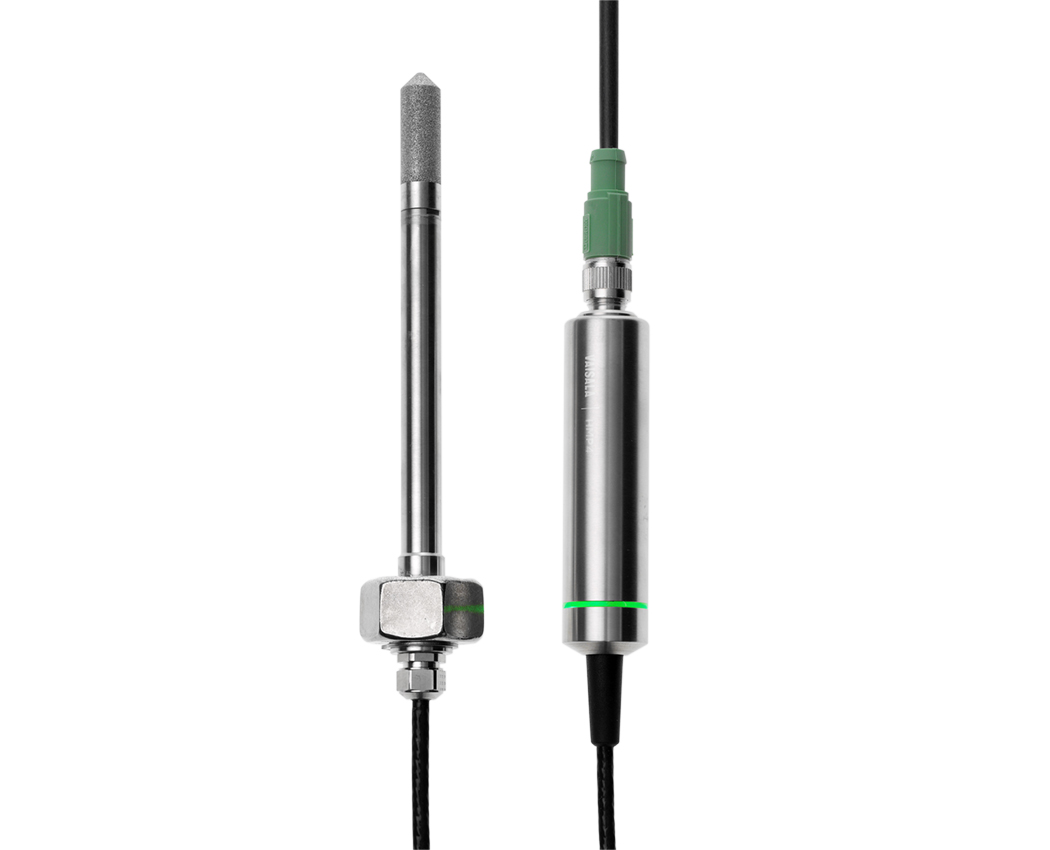

Vaisala HUMICAP® Humidity and Temperature Probe HMP4 is designed for high-pressure applications such as compressed air systems in maritime, breathing air, and industrial applications, where measurement performance and chemical tolerance are essential. The HMP4 is part of the Indigo product family and compatible with Indigo 200 Series Host Devices and free Insight PC Software.



Technical Specification

Features

  • RH accuracy up to 0.8 %RH, Temperature accuracy up to 0.1 °C (0.18 °F)
  • Temperature measurement range -70 ... +180 °C (-94 ... +356 °F)
  • Operating pressure 0 ... 10 MPa (0 ... 100 bar)
  • Sensor purge provides superior chemical resistance
  • Modbus RTU over RS-485
  • Plug & play compatible with Indigo™ series of transmitters
  • Traceable calibration certificate: 5 points for humidity, 1 point for temperature
