Probe TS 90/80 Macro

Probe TS 90/80 Macro is available throughout Austria from Industrie Automation Graz, IAG.

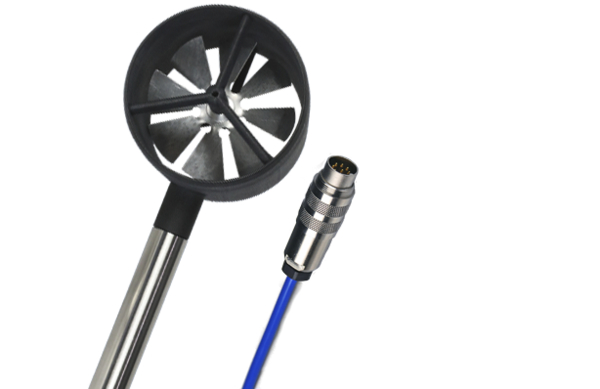

Probe TS 90/80 Macro ZG1 - for measurement of very low air flows - with connection cable

Probe TS 90/80 Macro is available throughout Austria from Industrie Automation Graz, IAG.

Product Description

Probe TS 90/80 Macro:

TS 90/80 macro probes are able to measure air flows already from 0.2 m/s. Compared to cylindrical probes ZS, the TS probes offer a significantly lower sensitivity to indirect oncoming flow, so that they can be used when the direction of flow is not known.

Materials: stainless steel, zinc alloy, aluminium, ...

Working temperature range up to +125 °C.

Suitable for fixed and portable measuring of flow velocity v [m/s] in clean gases, briefly in particle-laden gases.

Signal evaluation with handheld flowtherm NT.2, flowtherm Ex, transducer UFA and system units.

Technical Specification

Features for Probe TS 90/80 Macro:

  • Measuring range: 0.2 ... 50 m/s in gases
  • Media temperature: -20 ... +125 °C
  • Media: gases
  • IP protection type: IP50 (sensor head and cable side)
  • Type of protection: ATEX category 2G (zone 1), (optional)
  • Sensor output: v/FA
