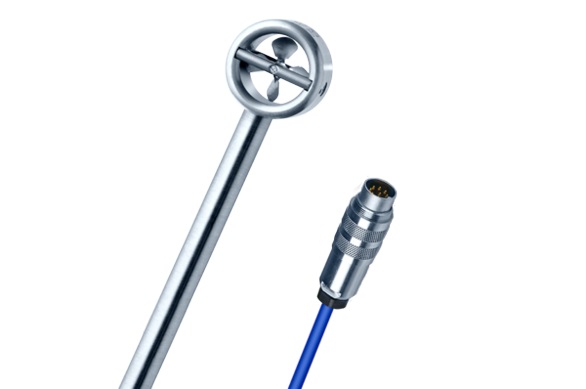

Probe TS/TSR ZG1

The Probe TS/TSR-ZG1 is available throughout Austria from Industrie Automation Graz, IAG.

Probe TS/TSR ... ZG1 - for aerodynamic analysis with connection cable

The Probe TS/TSR-ZG1 is available throughout Austria from Industrie Automation Graz, IAG.

Product Description

Probe TS/TSR ZG1

Compared to ZS cylindrical probes, TS and TSR probes offer a significantly lower sensitivity to indirect oncoming flow, so that they can be used when the direction of flow is not known. TSR probes are able to sense the +/- direction of flow appropriately signed.

Sensor material: stainless steel.

Working temperature range up to +125/+260 °C.

Suitable for fixed and portable measuring of flow velocity v [m/s] in clean gases, briefly in particle-laden gases.

Signal evaluation with handheld flowtherm NT, flowtherm Ex, transducer UFA and system units.

Technical Specification

Features for Probe TS/TSR ZG1:

  • Measuring range: 0.4 ... 80 m/s in gases
  • Media temperature: -15 ... +125/+260 °C
  • Media: gases
  • IP protection type: IP50 (sensor head and cable side)
  • Type of protection: ATEX category 2G (zone 1), (optional)
  • Sensor output: v/FA, v/FAR
