Thermal Probe TA10C

The Thermal Probe TA10C is available throughout Austria from Industrie Automation Graz, IAG.

Thermal Probe TA10C - for measuring laminar flow

The Thermal Probe TA10C is available throughout Austria from Industrie Automation Graz, IAG.

Product Description

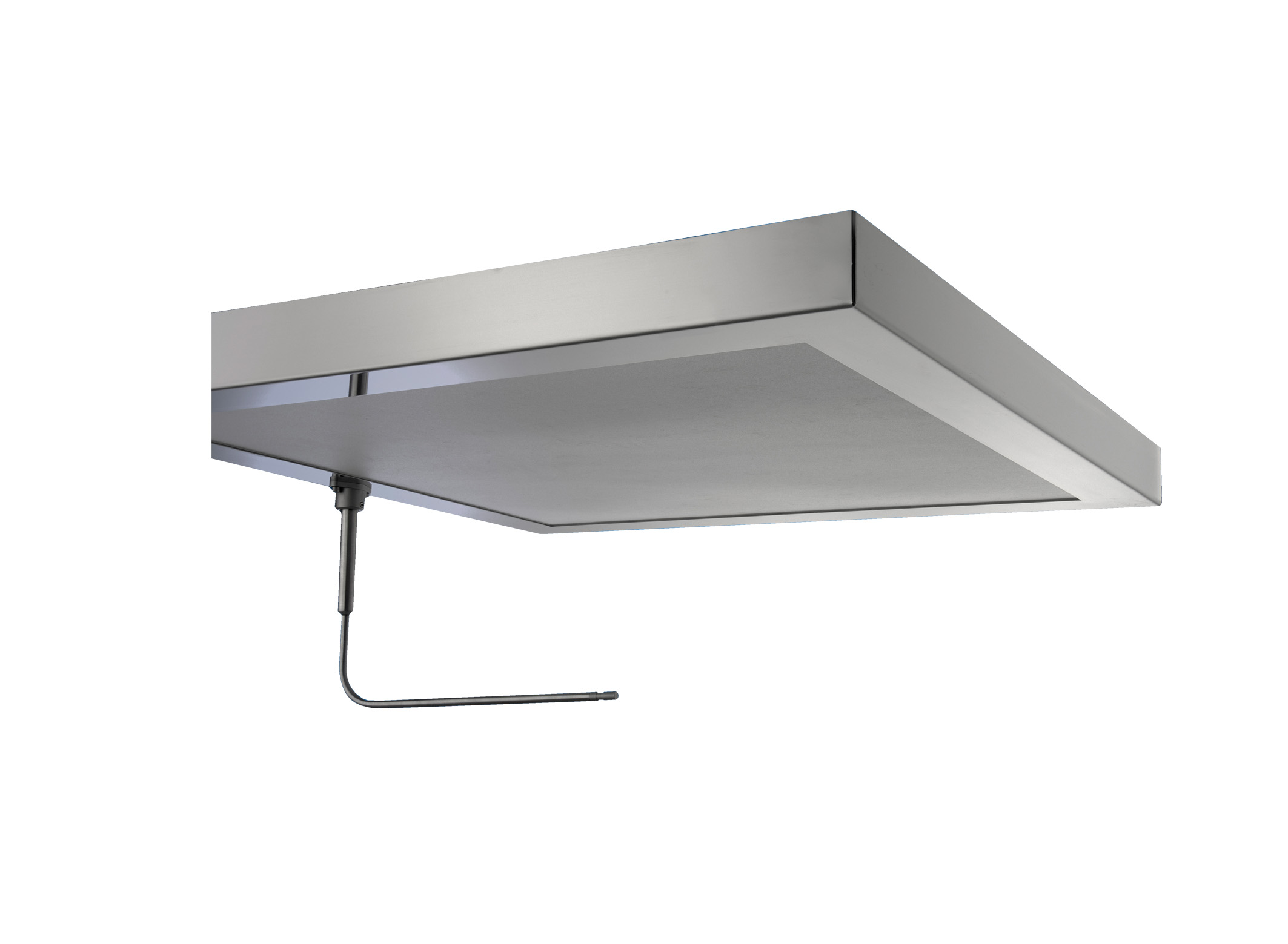

Thermal Probe TA10C

Thermal flow sensors in probe design with shaft diameter 10/18 mm and transducer UTA integrated in the sensor shaft.

Examples of application: in clean rooms, for mounting on ceilings or walls.

Probe material: stainless steel.

Suitable for fixed measuring of standard velocity v [m/s], standard flow rate NV/t [m³/h] and standard volume NV [m³].

Applications:

  • measuring laminar flow, e.g. under fan filter units (FFU) in clean room environments
  • flow measurement in pharmaceutical applications
  • flow monitoring in glove boxes

Advantages:

  • exact measurement of low flow velocities
  • no separate transducer necessary
  • GMP-compliant design
  • sterilisable
  • self-monitoring
  • configurable via RS232 interface
  •

Technical Specification

Features for Thermal Probe TA10C:

  • Measuring range: 0.2 ... 1 / 2 / 20 m/s
  • Pressure resistance: up to 16 bar / 1.6 MPa
  • Media temperature: -10 ... +80 °C
  • Media: air / gases
  • Type of protection: ATEX category 3G and 3D (zone 2 and 22) (optional)
  • Sensor output: analog output flow 4-20 mA, relay for quantity pulse, RS232 interface
