SAVE

Der SAVE ist österreichweit bei der Firma Industrie Automation Graz, IAG, erhältlich.

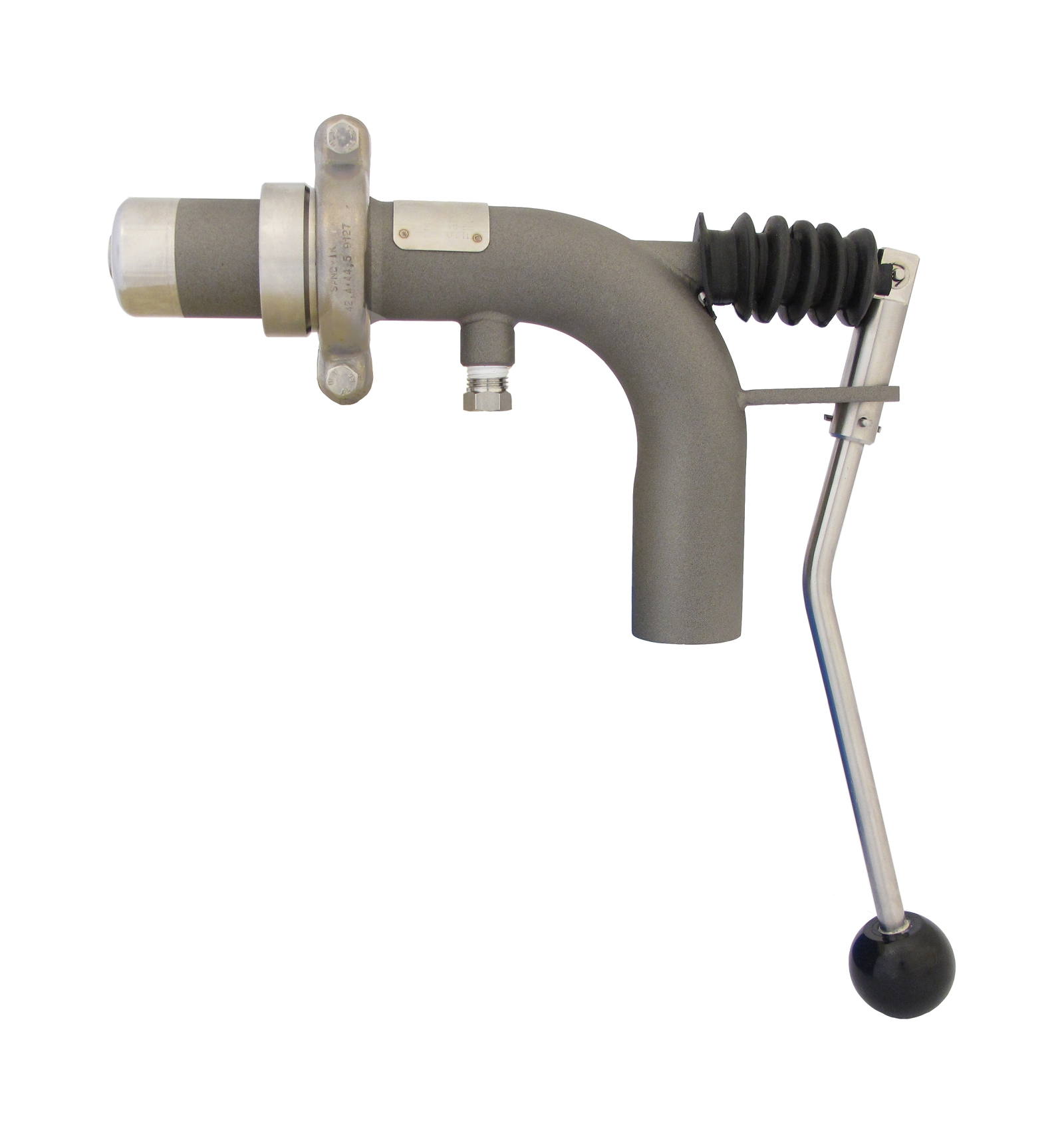

Sampler of pulp slurry

Der SAVE ist österreichweit bei der Firma Industrie Automation Graz, IAG, erhältlich.

Product Description

SAVE has been designed for controlled and safe sampling of pulp slurry.

SAVE’s head is shaped and dimensioned to ensure a representative sample.

The sampler head is inserted deep into the process pipe, past the water layer flowing along the pipe wall.

SAVE’s interior parts can be flushed with water after the sample has been taken, to prevent build up or blockage of sampler.

Since the sampling valve’s shut-off mechanism is at the head of the sampler, SAVE will not get blocked even during long duty intervals.

SAVE’s piston utilizes metal-to-metal sealing and does not include any wearing parts, such as rubber seals.

Technical Specification

Applicability: Concistency range 0…8 % Cs
Process pressure: max. 2,5 MPa (except when coupling material is fiberglass-reinforced plastic: 1,6 MPa
Connectors: Water flushing connector: G1/4, Pneumatic connections for cylinder and regulating valve: G1/8 (5pcs)
Materials: Parts in constant contact with process medium: refer to Selection Chart

Other parts: EN 1.4404 /AISI316L), Pneumatic cylinder: aluminium alloy, Piston rod: hard chrome plate steel
