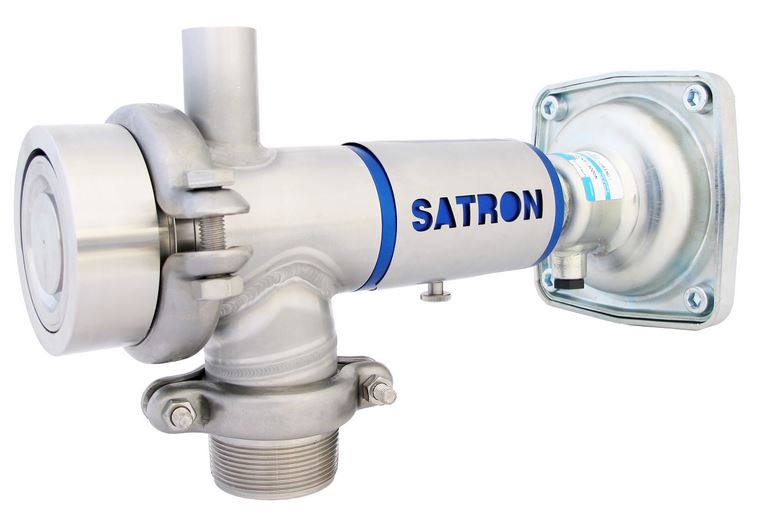

Satron SAVE H is a pneumatically actuated sampling valve designed for high-consistency wood pulps and/or pulp containing shives and knots.
The sampler is suitable for all pulp sampling applications in the pulp and paper industry.
Applicability: Concistency range 0…18 % Cs
Process pressure: max. 2,5 MPa (except when coupling material is fiberglass-reinforced plastic: 1 MPa
Connectors: Water flushing connector: R3/4, Pneumatic connections for cylinder and regulating valve: R1/4 (R1/8 adapters included)
Materials: Parts in constant contact with process medium: EN 1.4404 (AISI316L) + UNS S21800 (Nitronic 60) or EN 3.7035 (Ti-II),
Other parts: EN 1.4404 (AISI316L), aluminium alloy
