Product Description

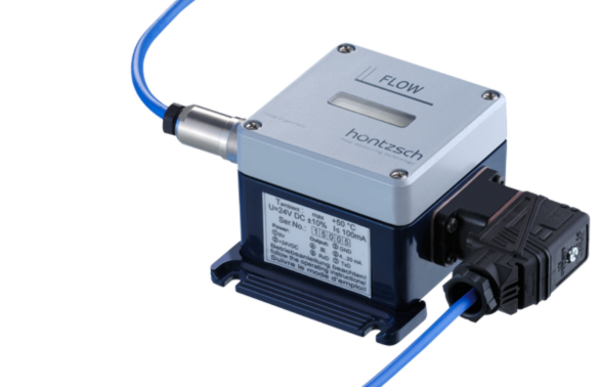

The U10B transmitter features two freely configurable 4–20 mA analog outputs, a relay output for limit value or pulse, and an optional M-Bus output. It is powered by 24 V DC, allowing easy integration into industrial systems.
Configuration can be done either via an optional keypad in the housing cover or conveniently through the optional WiFi interface, enabling quick adaptation to various measurement tasks.
Technical Specification
The U10B displays standard flow / standard volumetric flow, mass flow, totalized volume, mass, and flow velocity, providing comprehensive monitoring of gas processes.
The housing meets IP65 protection rating, ensuring protection against dust and water jets. An optional ATEX approval (Category 3G and 3D, Zone 2 and 22) allows use in hazardous areas.
The transmitter includes sensor inputs for TA10 and TA Di sensors with thin-film sensing elements. For signal transmission, it offers two linear, freely configurable 4–20 mA analog outputs, a relay for pulse output, and optional WiFi and M-Bus interfaces.
