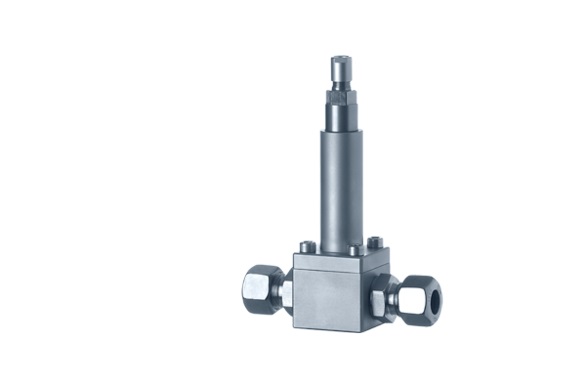

Vane Wheel Measuring Tube 9.7 mm up to 100 °C:
Vane wheel measuring tube with inside diameter 9.7 mm and integrated transducer UFA (optional).
Probe material: stainless steel.
Working temperature range up to +100 °C.
Suitable for fixed measuring of flow rate V/t [m³/h, l/min] in clean gases, briefly also in particle-laden mediums. Signal evaluation with integrated or separate transducer UFA, handheld flowtherm NT or flowtherm Ex and system units.
Features for Vane Wheel Measuring Tube 9.7 mm up to 100 °C:
- Measuring range: 1.8 ... 117 l/min in air / gases
- Pressure resistance: up to 10 bar / 1 MPa overpressure
- Media temperature: -25 ... +100 °C
- Media: gases
- IP protection type: IP65 (connection housing)
- Type of protection: ATEX category 2G (zone 1), (optional)
- Sensor output: analog output 4-20 mA, limit value, quantity pulse, RS232 interface (with integrated UFA)
