PMT® 8300

Product Description

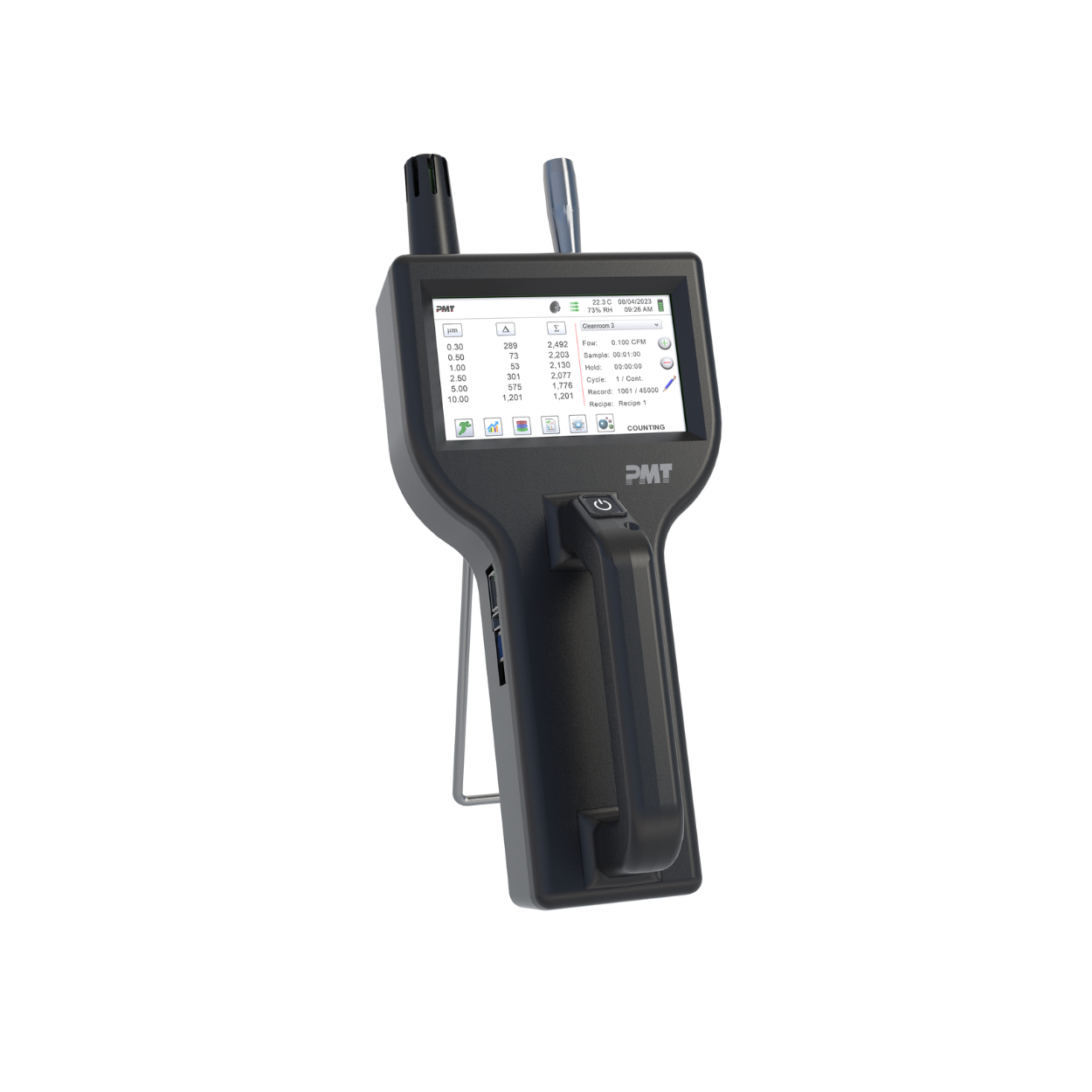

The PMT® 8300 Handheld Particle Counter

measures particle sizes from 0.3 to 25 μm at a flow rate of 1.2 LPM. It is ideal for cleanrooms, IAQ, occupational safety, and research. Featuring laser diode technology, a large color touchscreen, integrated temperature and humidity sensors, and a runtime of over 10 hours, it offers maximum usability.
Up to 6 data channels can be displayed simultaneously, while 45,000 sample records, 1,000 sample locations, and 50 recipes can be stored. Fully compliant with ISO 14644-1, EU GMP Annex 1, FS 209E, ISO 21501-4, and JIS B9921, the 8300 ensures regulatory compliance. With Ethernet, USB, and optional WiFi, it integrates seamlessly into building monitoring systems.

Technical Specification

The instrument measures 0.3 to 25 μm at a flow rate of 1.2 LPM. Factory-calibrated at 0.3 / 0.5 / 1.0 / 2.5 / 5.0 / 10 μm, with user-definable channels available. The concentration limit is 27 million particles/ft³ at 10% coincidence loss. Counting efficiency is 50% at 0.3 μm and 100% for particles >0.45 μm.
Powered by a removable Li-Ion battery, the device provides over 10 hours runtime. The 4.3″ WQVGA color touchscreen enables intuitive operation. Up to 45,000 records including locations, notes, and environmental data can be stored and exported via USB, Ethernet, or optional WiFi.
It includes an internal HEPA filter and automatic flow control. Dimensions: 13 × 10.8 × 31.1 cm, weight: 1.0 kg. Built with impact-resistant plastic housing, backed by a 5-year warranty (1 year for vacuum pump).
