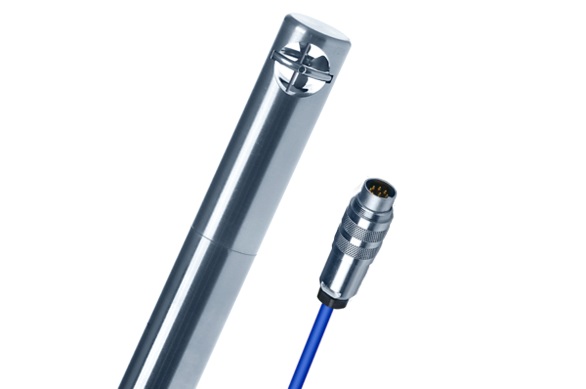

Probe FT25 - with integrated temperature sensor Pt100

The Probe FT25 is available throughout Austria from Industrie Automation Graz, IAG.

Product Description

Probe FT25:


Cylindrical vane wheel sensor / insertion probe with integrated temperature sensor Pt100 for combined measurement flow/temperature and probe diameter 25 mm.  Probe materials: aluminium, stainless steel or titanium. Working temperature range up to +260 °C.  Suitable for fixed measuring of actual flow velocity v [m/s] and flow rate V/t [m³/h, l/min] in clean gases and liquids, briefly also in particle-laden mediums. They are extendable and therefore practical for applications in smoke stacks, etc. Signal evaluation with handheld flowtherm NT or flowtherm Ex, transducer UFA and system Units.

Technical Specification

Features for Probe FT25:

  • Measuring range: 0.4 ... 120 m/s in air/gases; 0.04 ... 10 m/s in water/liquids
  • Pressure resistance: up to 6 bar / 600 kPa overpressure
  • Media temperature: -40 ... +260 °C
  • Media: gases / liquids
  • IP protection type: IP65 (cable side)
  • Type of protection: ATEX category 2G (zone 1), (optional)
  • Sensor output: v/FA, t/Pt100
