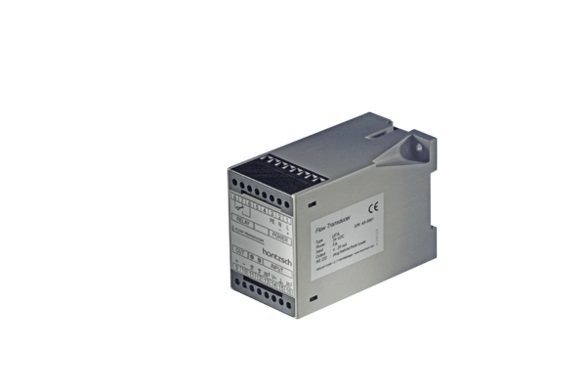

Transducer UVA - in top-hat rail mounting
Product Description
Transducer UVA in top-hat rail mounting:
For connection with probes VA and measuring tubes VA Di. Conversion of actual to standard flow/flow rate. For ATEX category 2G (zone 1) applications, an additional isolation / suppy unit LDX2 is necessary. With flow-proportional analog output 4-20 mA, relay (potential-free, two-way contact) for use as limit value, quantity pulse or indication of +/- flow direction.
Self-diagnosis according to NAMUR NE43.
Power supply 12 VDC, 24 VDC oder 230 VAC.
Configurable via PC interface and software UCOM.
Technical Specification
Features for Transducer UVA in top-hat rail mounting:
- IP protection type: IP20
- Sensor input: v/VA
- Sensor output: analog output flow 4 ... 20 mA or 0 ... 10 V flow-proportional, relay for limit value or quantity pulse, RS232 interface
