Product Description

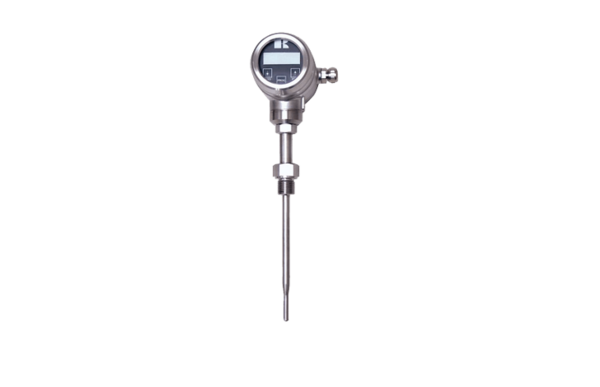

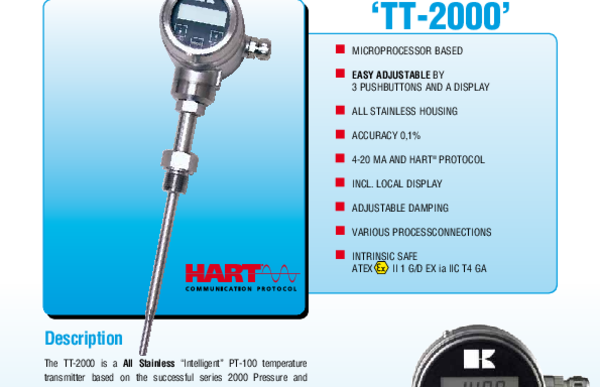

The TT-2000 temperature transmitter is an intelligent microprocessor-based temperature transmitter with a durable all-stainless-steel construction designed for accurate industrial temperature measurement. The device comes standard with an integrated display and three push buttons for simple local programming and configuration.
The TT-2000 is ideal for precise temperature measurement in tanks, pipelines, and hygienic process systems. Its compact and robust design makes it suitable for industrial, food processing, pharmaceutical, and general process applications.
The transmitter supports hygienic process connections according to EHEDG and 3A standards and is optionally available with HART communication as well as ATEX and IECEx Ex-ia explosion protection approvals.
With its stainless steel housing, flexible installation options, and user-friendly operation, the TT-2000 offers a reliable solution for demanding temperature monitoring applications.
Technical Specification
The TT-2000 operates within a temperature measuring range of -50 °C to +200 °C. Measurement accuracy is specified at 0.1%.
The insertion dimensions range from 3 to 20 mm diameter with insertion lengths from 5 mm to 4 m.
Available process connections include threaded connections, hygienic connections according to EHEDG and 3A, and flanged connections.
The transmitter uses a 3-wire Pt100 sensing element according to 1/3 DIN Class B standards.
The standard output signal is 4–20 mA two-wire, with an optional HART protocol available.
Configuration can be performed directly through the integrated display and three push buttons, without requiring a reference temperature, or alternatively via HART communication.
Power supply requirements are 12–36 VDC, while explosion-proof versions operate at 12–26.5 VDC.
The protection class is IP66, with an optional IP68 version available. The ambient operating temperature range is -20 °C to +70 °C.
All wetted parts are manufactured from AISI 316 stainless steel. The electronics housing is made from AISI 304 stainless steel, with an optional AISI 316 version available.
Optional certifications include ATEX Ex-ia and IECEx Ex-ia explosion safety approvals.
Available accessories include welding nipples, protection pockets, and thermowells for various installation requirements.
