Product Description

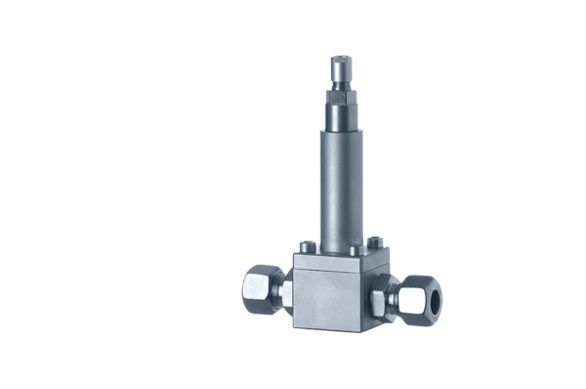

Vane Wheel Measuring Tube 9.7 mm up to 240 °C:

Vane wheel measuring tube with inside diameter 9.7 mm and integrated transducer UFA (optional).

Probe material: stainless steel.

Working temperature range up to +240 °C.

Suitable for fixed measuring of flow rate V/t [m³/h, l/min] in clean gases, briefly also in particle-laden mediums. Signal evaluation with integrated or separate transducer UFA, handheld flowtherm NT or flowtherm Ex and system units.

Technical Specification

Features for Vane Wheel Measuring Tube 9.7 mm up to 240 °C:

  • Measuring range: 1.8 ... 117 l/min in air / gases
  • Pressure resistance: up to 10 bar / 1 MPa overpressure
  • Media temperature: -20 ... +240 °C
  • Media: gases
  • IP protection type: IP65 (connection housing)
  • Type of protection: ATEX category 2G (zone 1), (optional)
  • Sensor output: analog output 4-20 mA, limit value, quantity pulse,
    RS232 interface (with integrated UFA)
