Vane Wheel Transducer UFA - in top-hat rail mounting

The Vane Wheel Transducer UFA top-hat rail mounting is available throughout Austria from Industrie Automation Graz, IAG.

Transducer UFA - in top-hat rail mounting

The Vane Wheel Transducer UFA top-hat rail mounting is available throughout Austria from Industrie Automation Graz, IAG.

Product Description

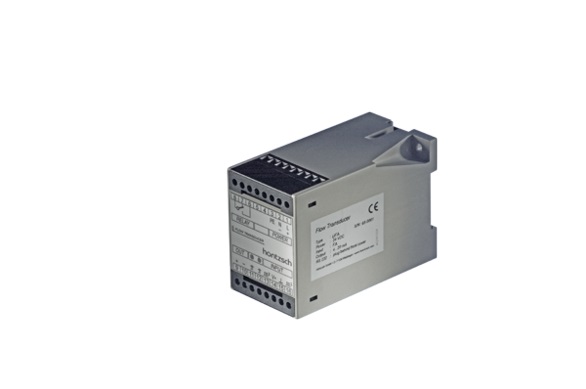

Vane Wheel Transducer UFA - in top-hat rail mounting:

For connection with probes FA/FAR (ZS, ZSR, TS, TSR) and measuring tubes FA Di/FAR Di.

Conversion of actual to standard flow / flow rate. For ATEX category 2G (zone 1) applications, an additional isolation / suppy unit LDX2 is necessary. With flow-proportional analog output 4-20 mA, relay (potential-free, two-way contact) for use as limit value, quantity pulse or indication of +/- flow direction.

Self-diagnosis according to NAMUR NE43.

Power supply 12 VDC, 24 VDC or 230 VAC.

Configurable via PC interface RS232 and UCOM software.

Technical Specification

Features for Vane Wheel Transducer UFA - in top-hat rail mounting::

  • IP protection type: IP20
  • Sensor input: v/FA; v/FAR
  • Sensor output: analog output flow 4 ... 20 mA or 0 ... 10 V flow-proportional, relay for limit value, quantity pulse or indication of +/- flow direction, RS232 interface
