Vortex Probe VA40...ZG7

The VA40-ZG7 vortex probe is available throughout Austria from Industrie Automation Graz, IAG.

Vortex Probe VA40 ... ZG7 - standard compact unit, variable insertion depth

Product Description

Vortex Probe VA40...ZG7:

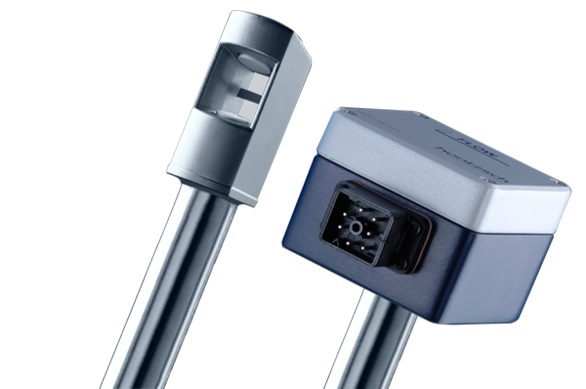

Vortex probe VA40 with sensor head diagonal dimension 40 mm and transducer UVA integrated in the connection housing. Probe material: stainless steel. Working temperature range up to +100 or +180 °C. Suitable for fixed measuring of actual flow velocity v [m/s] and actual flow rate V/t [m³/h] in clean as well as condensate and particle-laden gases. Signal evaluation with integrated transducer UVA.

Technical Specification

Features for Vortex Probe VA40...ZG7:

  • Measuring range: 0.5 ... 40 m/s
  • Pressure resistance: up to 3 bar / 300 kPa overpressure
  • Media temperature: -20 ... +100 / +180 °C
  • Media: gases
  • Displayed indicators: flow velocity, flow rate, volume
  • IP protection type: IP65 (connection housing)
  • Type of protection: ATEX category 3G and 3D (zone 2 and 22) (optional)
  • Sensor output: analog output 4-20 mA; limit value; quantity pulse; RS232 interface
